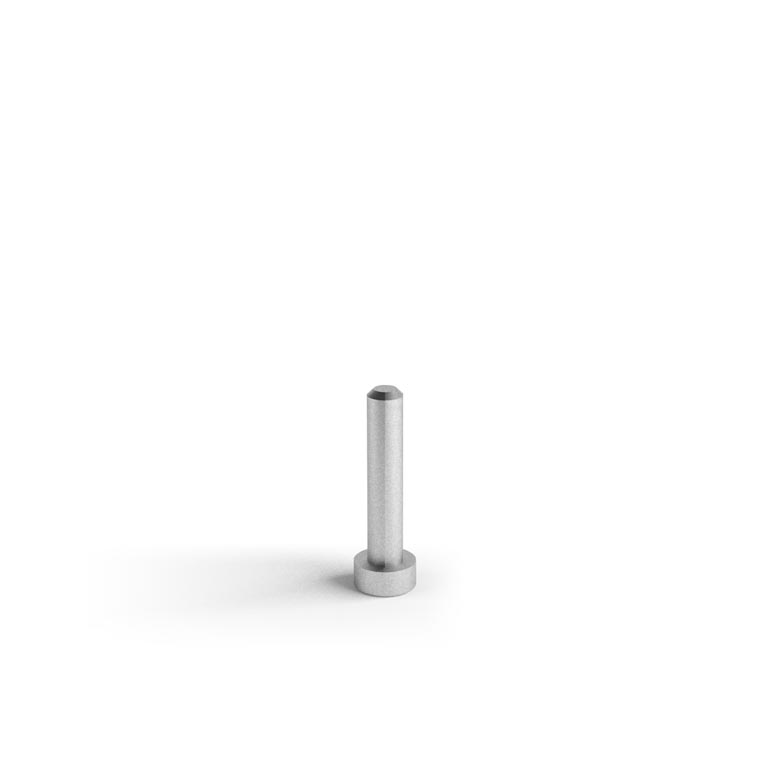

ISO metric thread screws

cod. C9010620

ISO metric thread screws

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

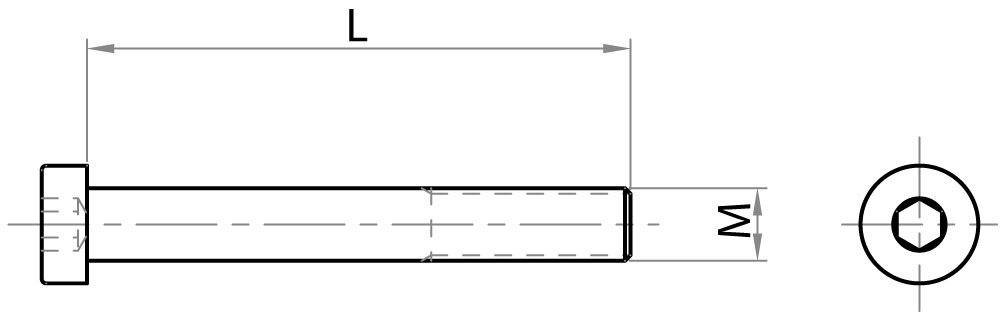

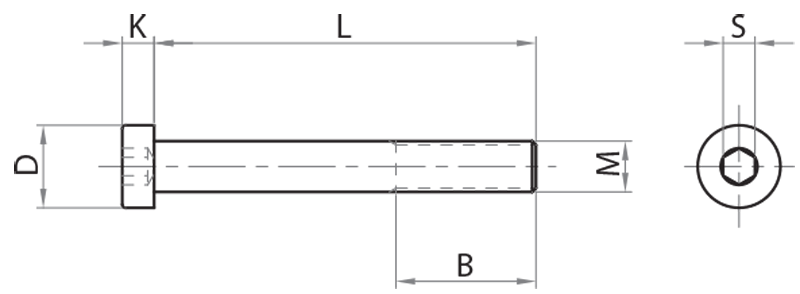

Art. No. Material Screw type MxL Regulations Weight (Kg)
C9010410 zinc-coated steel M4x10 UNI 9327 0,001
C9010514 zinc-coated steel M5x14 UNI 9327 0,003
C9010616 zinc-coated steel M6x16 UNI 9327 0,005
C9010620 zinc-coated steel M6x20 UNI 9327 0,005
C9010625 zinc-coated steel M6x25 UNI 9327 0,005
C9010816 zinc-coated steel M8x16 UNI 9327 0,009
C9010820 zinc-coated steel M8x20 UNI 9327 0,010
C9010825 zinc-coated steel M8x25 UNI 9327 0,012
C9010830 zinc-coated steel M8x30 UNI 9327 0,012
C9010835 zinc-coated steel M8x35 UNI 9327 0,012
C9010843 zinc-coated steel M8x43 UNI 9327 0,017
C9010850 zinc-coated steel M8x50 UNI 9327 0,021
C9010860 zinc-coated steel M8x60 UNI 9327 0,025
C9011220 zinc-coated steel M12x20 UNI 5931 0,020
C9060620 zinc-coated steel M6x20 UNI 7380 0,004
C9060820 zinc-coated steel M8x20 UNI 7380 0,009
C9060825 zinc-coated steel M8x25 UNI 7380 0,010
C9080420 zinc-coated steel M4x20 UNI 5933 0,002
C9080525 zinc-coated steel M5x25 UNI 5933 0,003
