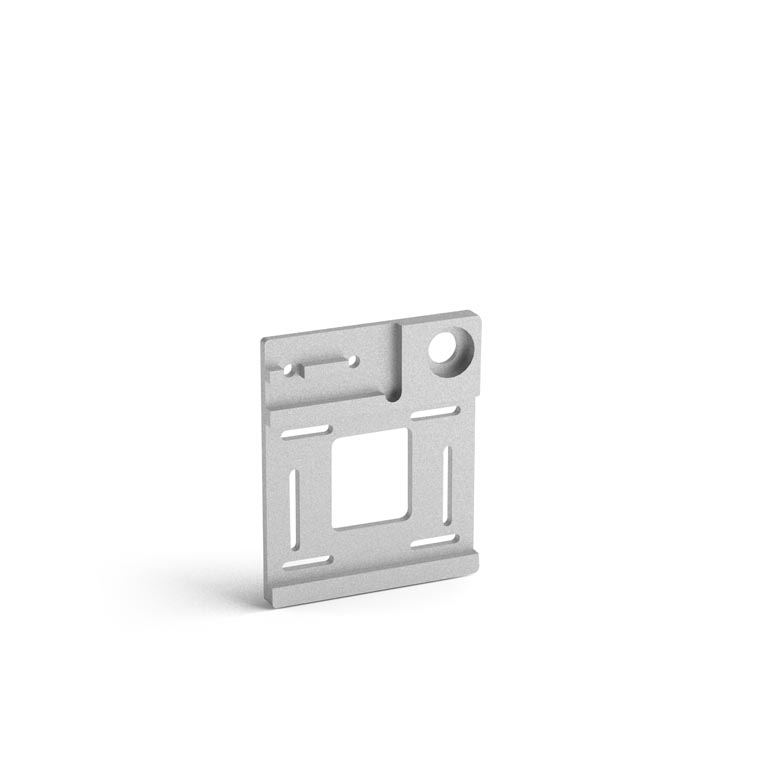

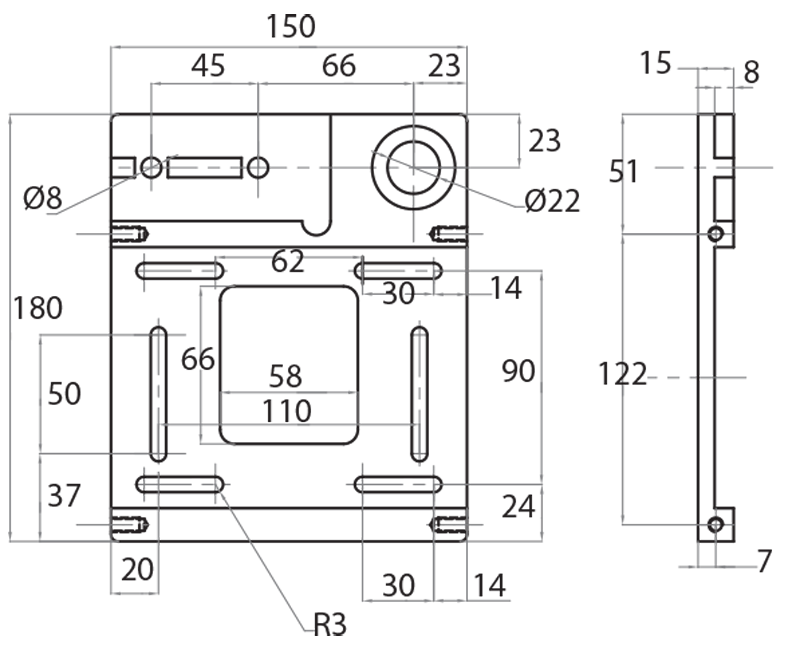

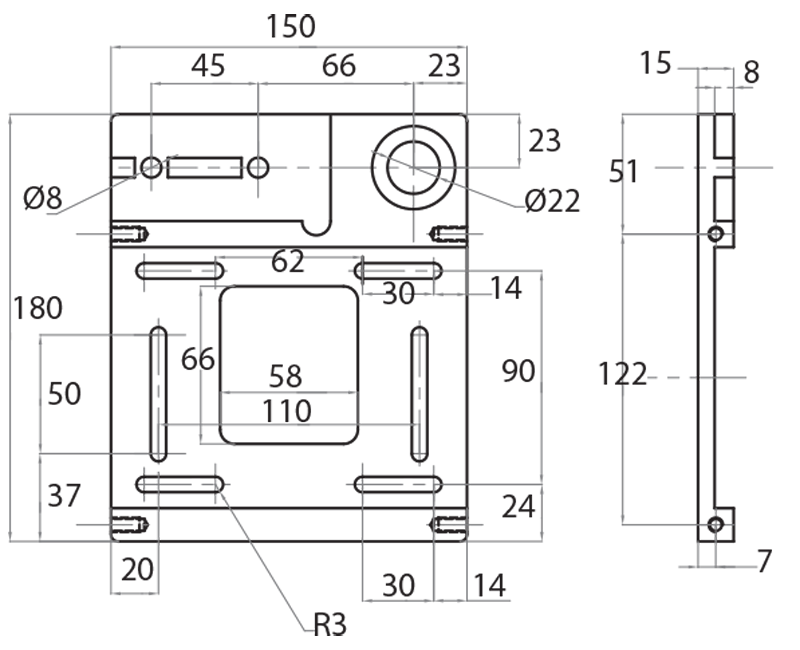

Reverse motorization left flange

cod. 904503SX

Reverse motorization left flange

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Assembly set Weight (Kg)
904503SX sandblasted aluminium complete with bearing, screws and protective casing 0,512
carter casing 0,127
