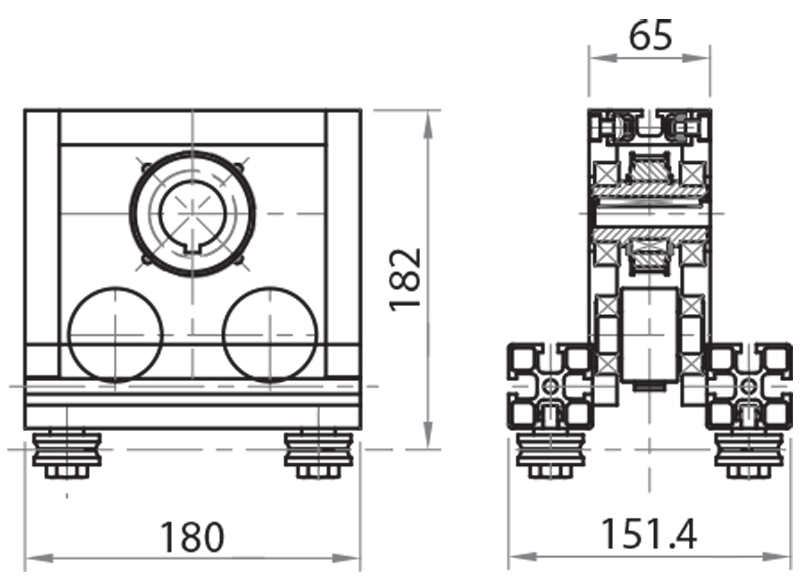

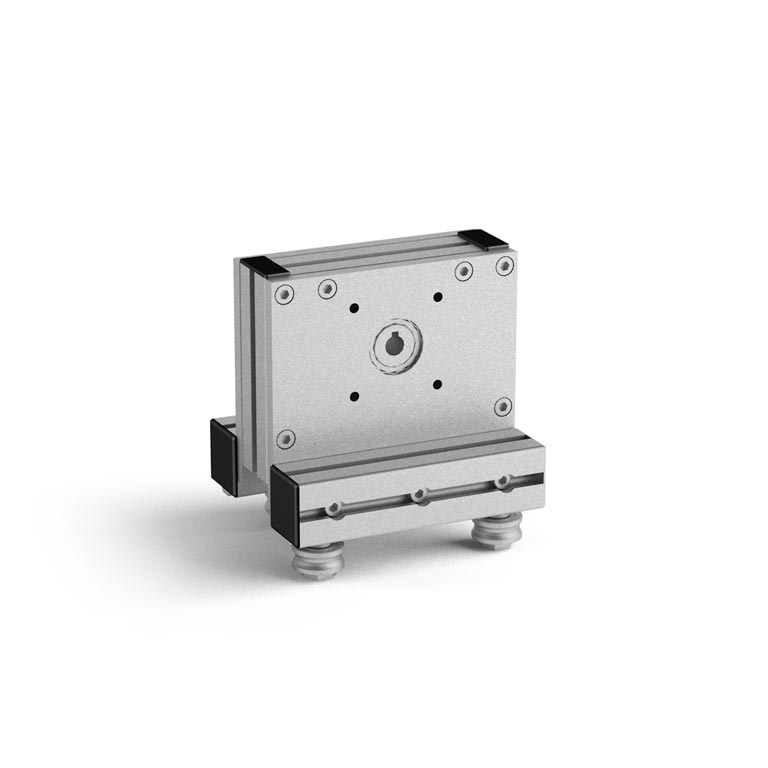

Drive unit for M08216 and M08225

cod. M08245-16

Drive unit for M08216 and M08225

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Pulleys Belt type Shaft and gear motor fastening (mm) Guide type (mm)
M08245-16



z18
dp=57,30
de=55,45



 16AT10

Ø14 - Ø68

 Ø12
M08245-25



z18
dp=57,30
de=55,45



 25AT10

Ø18 - Ø87

 Ø12
Suitable for MVF30 and MVF44 fastening
