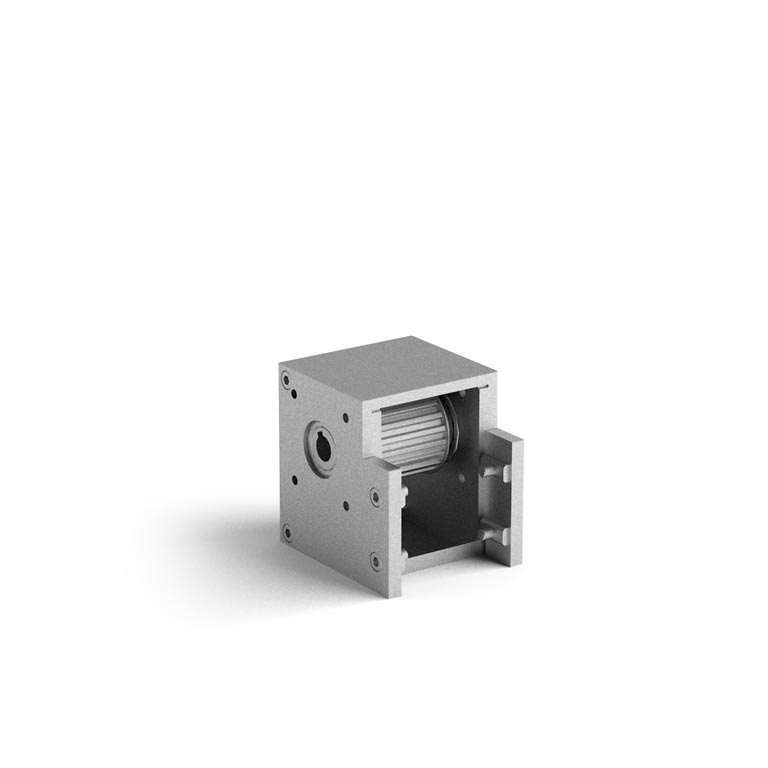

Drive unit for 810003

cod. 809091

Drive unit for 810003

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

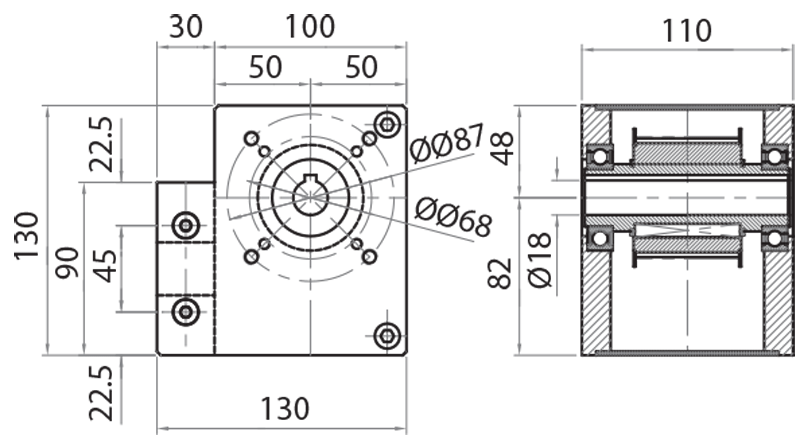

Art. No. Material Pulleys Belt type Shaft and gear motor fastening (mm) Weight (Kg)
809091 aluminium and steel z 20
pitch Ø=63,66 mm
external Ø=61,80 mm		 50AT10 Ø18 - Ø87 2,800
Suitable for MVF44 Bonfiglioli fastening
