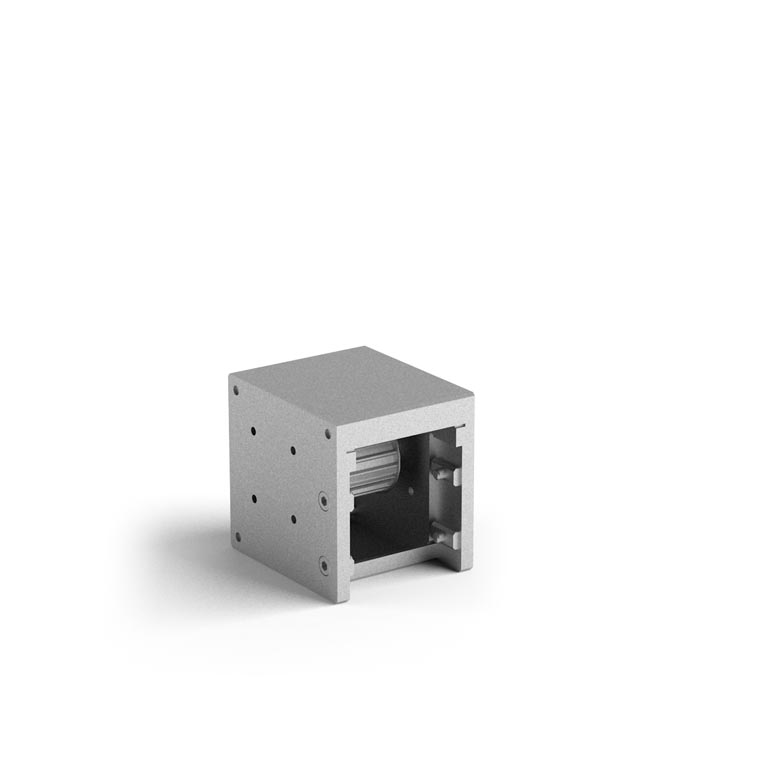

Reverse unit for 810050 and 810050P

cod. 804551

Reverse unit for 810050 and 810050P

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Pulleys Type Weight (Kg)
804551 aluminium and steel z 18
pitch Ø=57,30 mm
external Ø=55,45 mm		 for belt 50AT10 2,200
