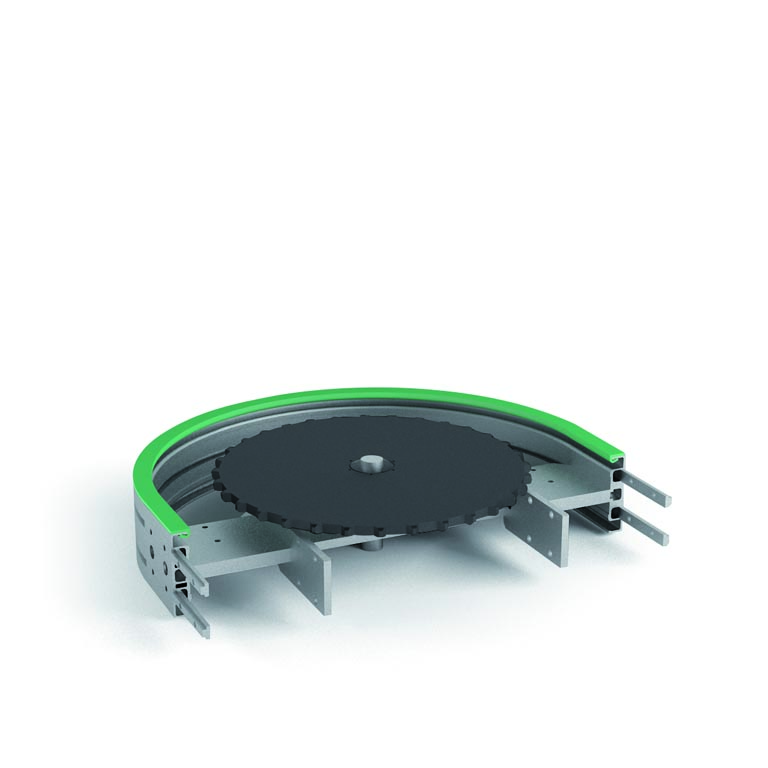

One way 180° idle curve average radius 200 mm (tire without teeth)

cod. AR100127-180

One way 180° idle curve average radius 200 mm (tire without teeth)

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Channel dimension (mm) Chain width (mm) Medium radius (mm) Angle
AR132127-180 127 114,3 200 180°
AR100127-180* 127 114,3 200 180°
* Tire without teeth
Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
