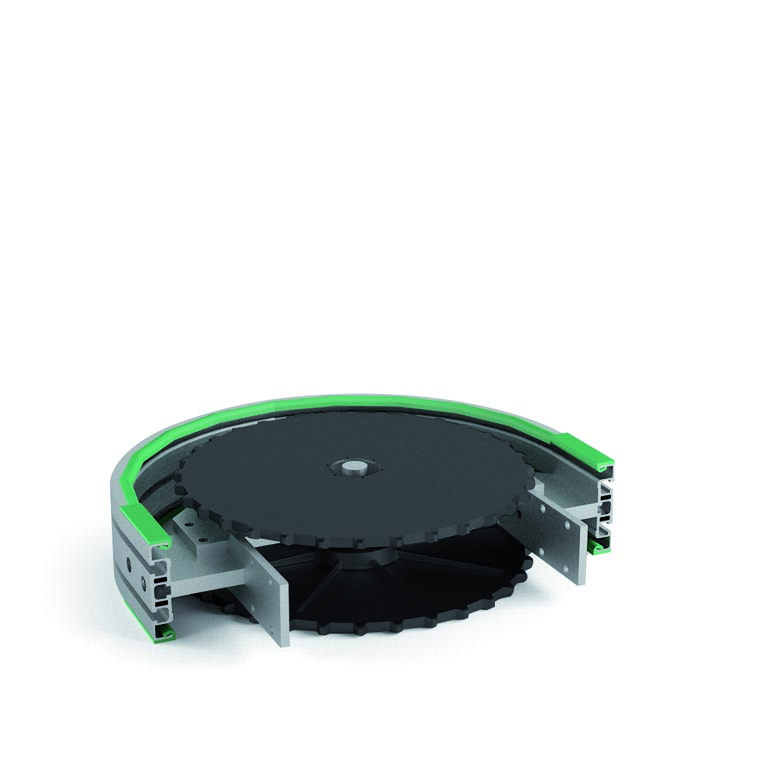

Return 180° idle curve average radius 200 mm

cod. AR232086-180

Return 180° idle curve average radius 200 mm

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

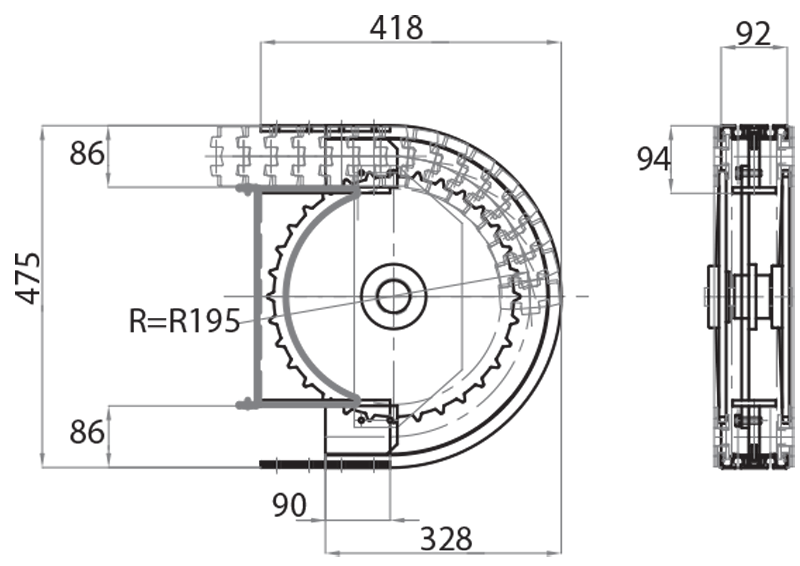

Art. No. Channel dimension (mm) Chain width (mm) Medium radius (mm) Angle
AR232086-180 86 82,5 200 180°
AR200086-180* 86 82,5 200 180°
* Pulley without teeth
AR232086-180 Return 180° idle curve average radius 200 mm AR232086-180 0.00€
AR200086-180 Return 180° idle curve average radius 200 mm (pulley without teeth) AR200086-180 0.00€
