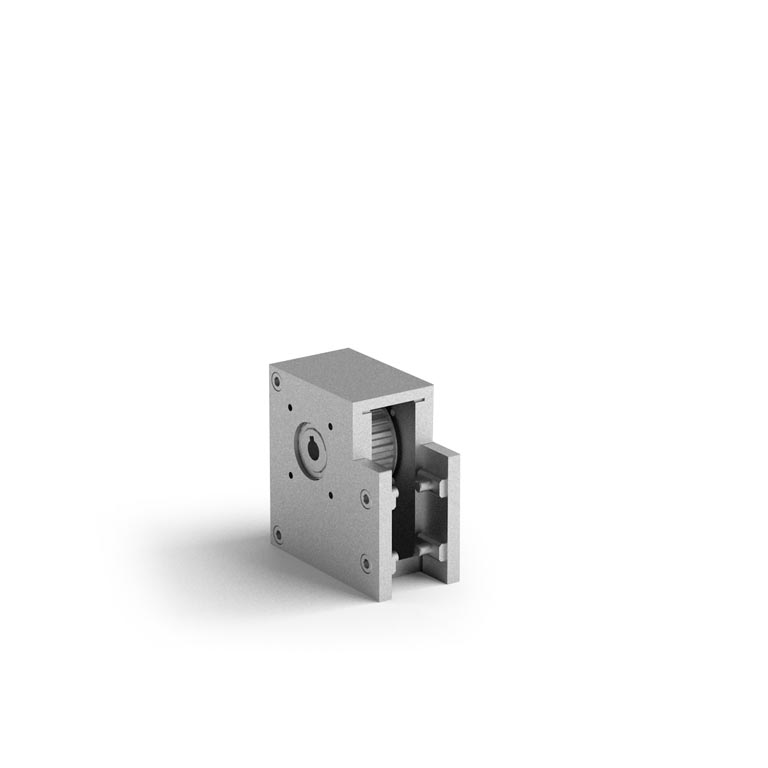

Drive unit for 810002

cod. 804593-18

Drive unit for 810002

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Pulleys Belt type Shaft and gear motor fastening (mm) Weight (Kg)

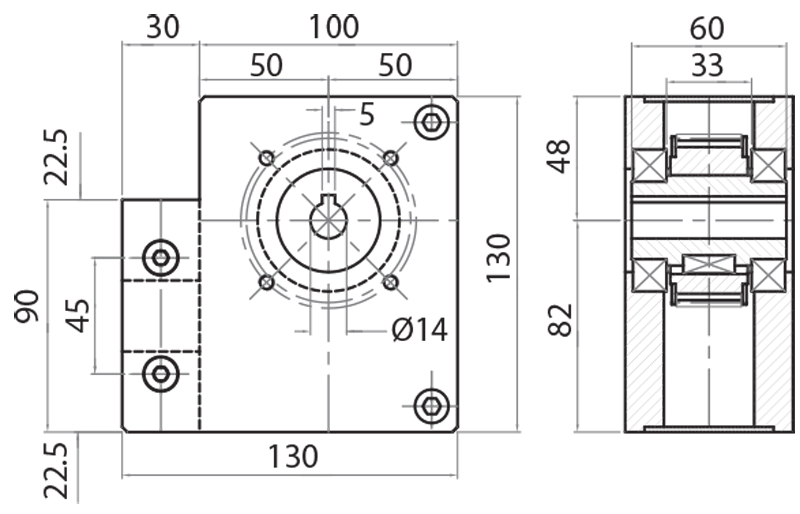

804593/14 aluminium and steel z 20
dp=63,66
de=61,80		 25AT10 Ø14 - Ø68 2,500

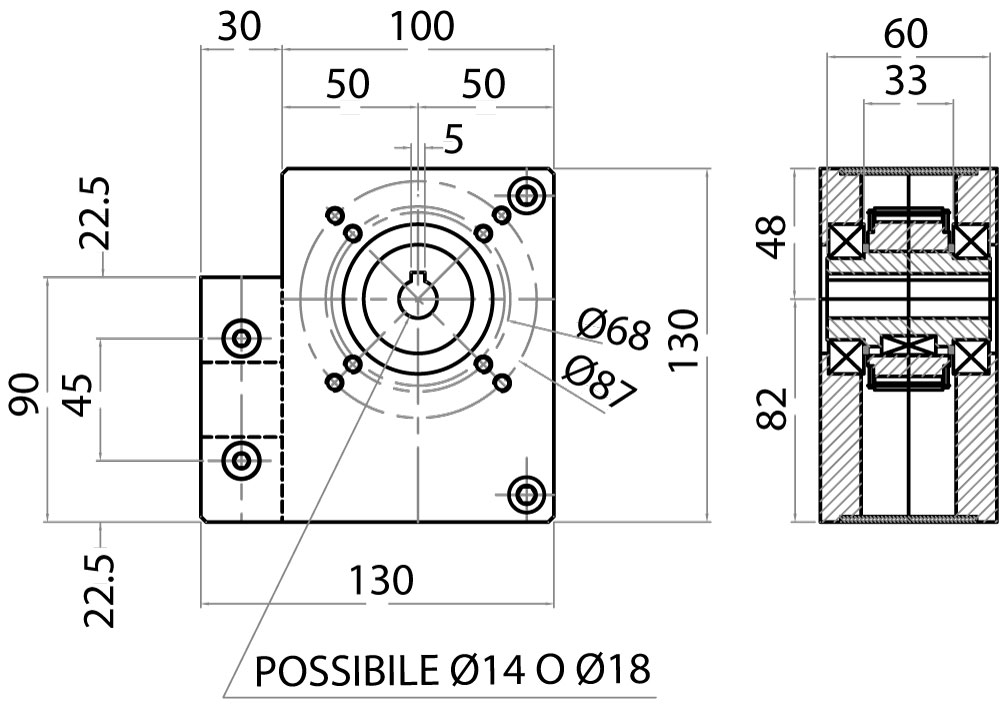

804593/18 aluminium and steel z 20
dp=63,66
de=61,80		 25AT10 Ø18 - Ø87 2,500
Suitable for MVF30 and MVF44 fastening
