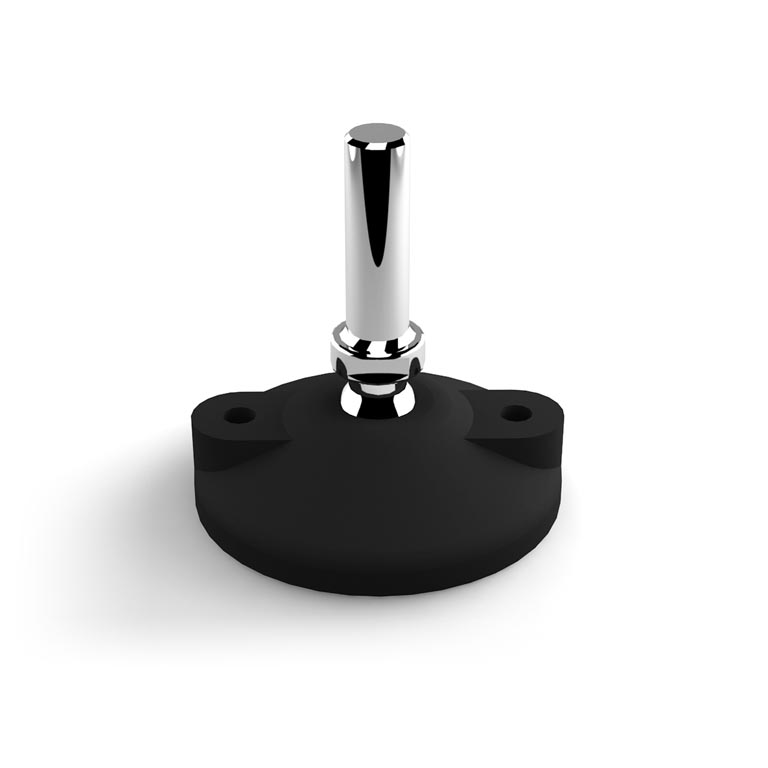

Anti-vibration fixable articulated feet Ø100 mm

cod. 419916

Anti-vibration fixable articulated feet Ø100 mm

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

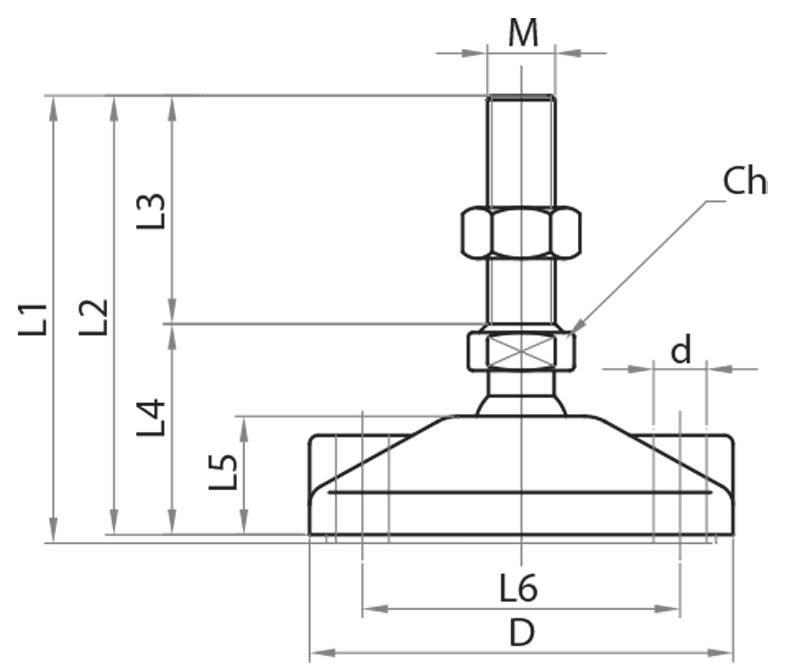

Art. No. Max Load (Kg) Base diameter (mm) Stem diameter Weight (Kg) L1 L2 L3 L4 L5 L6 D M Ch
419916 1200 100 M16 0,348 114 110 63 47 28 73,6 100 16 24
419916L 1200 100 M16 0,451 187 183 136 47 28 73,6 100 16 24
