18,5x32 Light

cod. 101832L

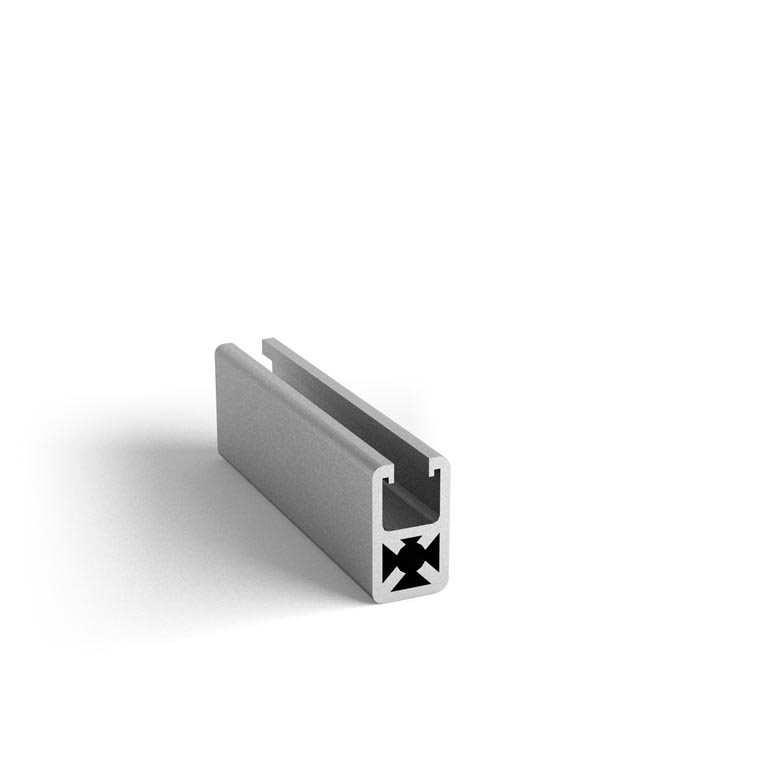

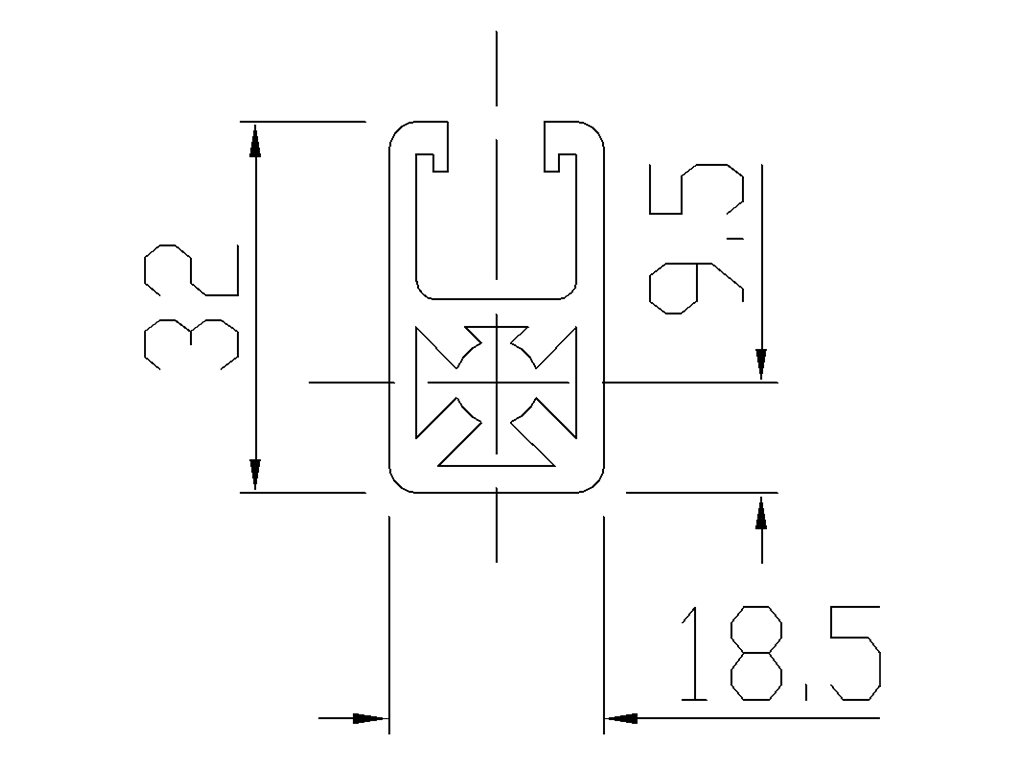

Standard profile 18,5x32 light

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Inertial moment lx Inertial moment ly Section modulus wx Section modulus wy Color Art. No. Weight
 2,53 cm4 1,22 cm4  1,58 cm3  1,32 cm3  Natural 101832L  0,750 Kg/m
GENERAL CHARACTERISTICS
ALLOY EN AW-6060
PHYSICAL STATUS T6
MECHANICAL PROPERTIES UNI EN 755-2
CHEMICAL COMPOSITION UNI EN 573-3
SHAPE TOLERANCES UNI EN 12020-2
SURFACE TREATMENT ANODIC OXIDATION 15 µm
* On request: mill finish / black anodized / raw
Supply: bars with length 6010 mm
* Minimum supply required

Prodotti collegati

221832 -221832G
End cap 18,5x32
