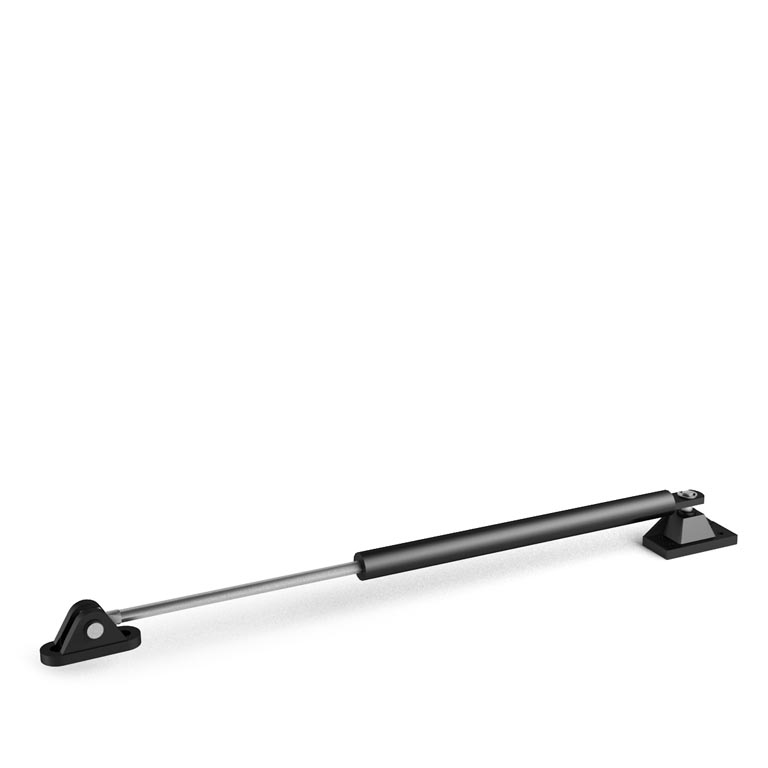

Gas springs for the production of counterbalanced doors/panels

cod. 700011-50

Gas springs for the production of counterbalanced doors/panels

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

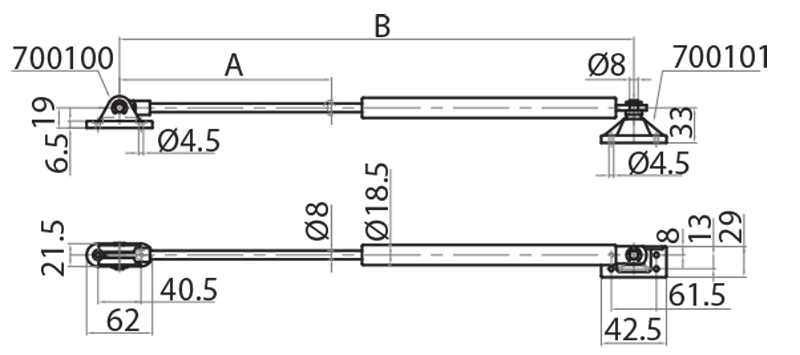

Art. No. Material Assembly set Push force (N) A (mm) B (mm) Weight (Kg)
700011-10 aluminium and steel complete with fixing supports 100 200 483 0,345
700011-40 aluminium and steel complete with fixing supports 400 200 483 0,345
700011 aluminium and steel complete with fixing supports 300 200 483 0,345
700011-50 aluminium and steel complete with fixing supports 500 200 483 0,365
700012 aluminium and steel complete with fixing supports 200 95 257 0,220
700014 aluminium and steel complete with fixing supports 200 200 485 0,345
700100 - 700101 front and rear fixing supports
