45x45 telescopic

cod. 134545

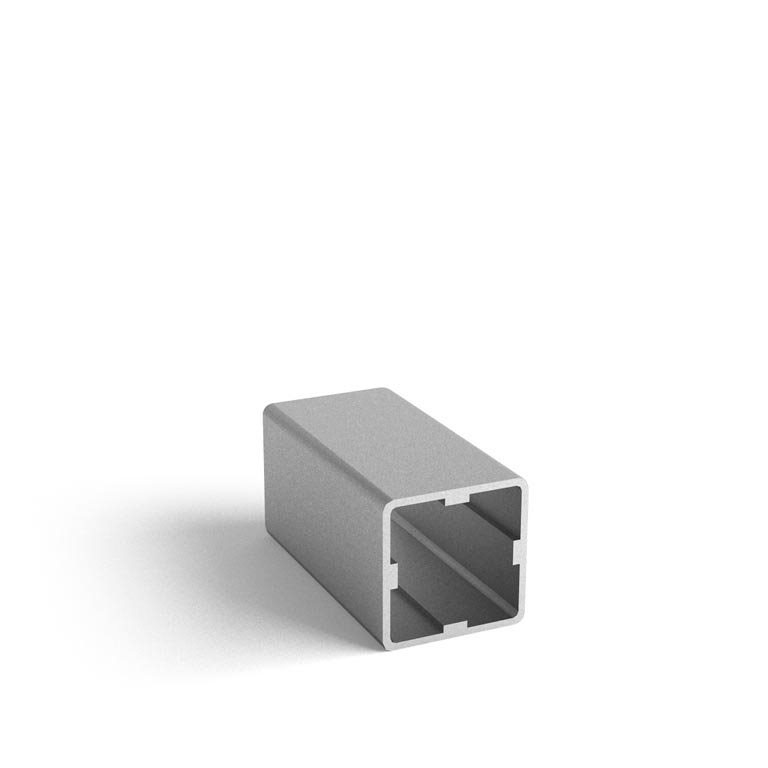

Telescopic aluminium profile 45x45 mm

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Bending inertial moment  lx  Bending inertial moment  ly   Section modulus wx  Section modulus wy Color  Art. No. Weight
 16,05 cm4 16,05 cm4  6,42 cm3  6,42 cm3  Natural  134545  1,250 Kg/m
GENERAL CHARACTERISTICS
ALLOY EN AW-6060
PHYSICAL STATUS T6
MECHANICAL PROPERTIES UNI EN 755-2
CHEMICAL COMPOSITION UNI EN 573-3
SHAPE TOLERANCES UNI EN 12020-2
SURFACE TREATMENT ANODIC OXIDATION 15 µm
* On request: mill finish / black anodized / raw
Supply: bars with length 6010 mm
* Minimum supply required
