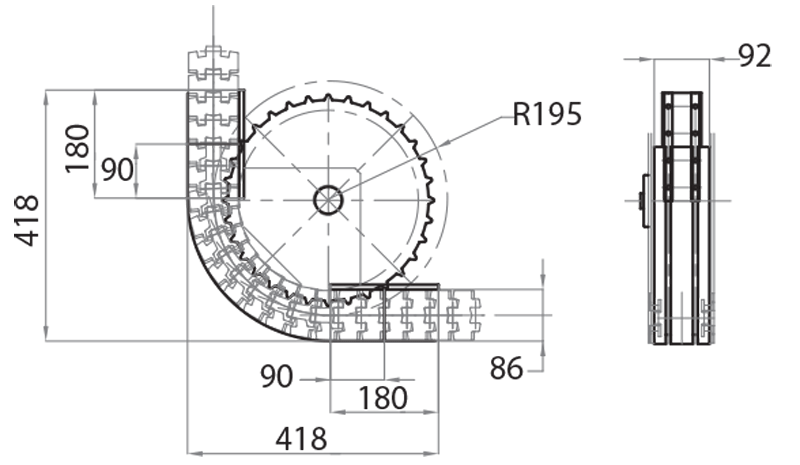

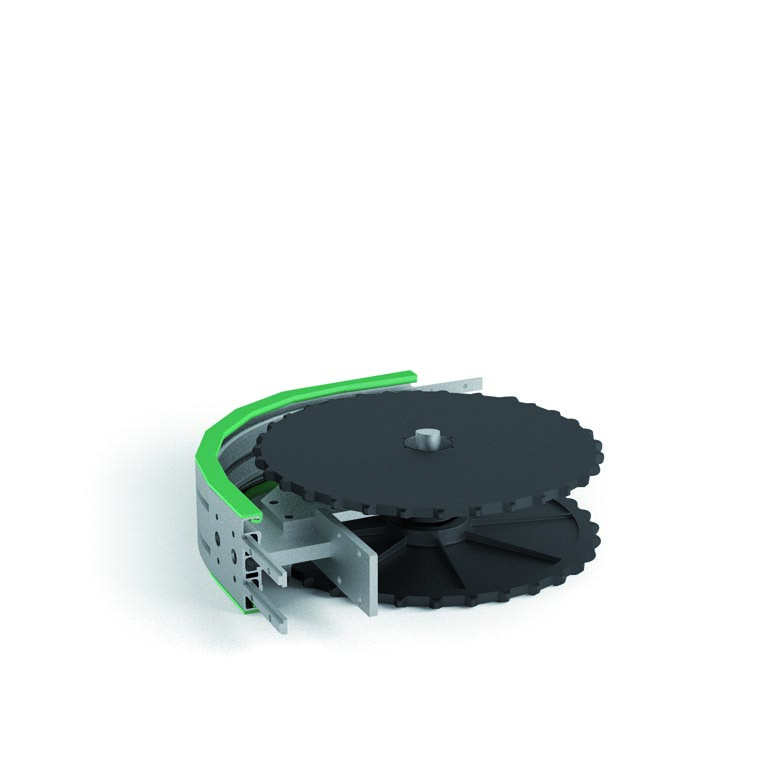

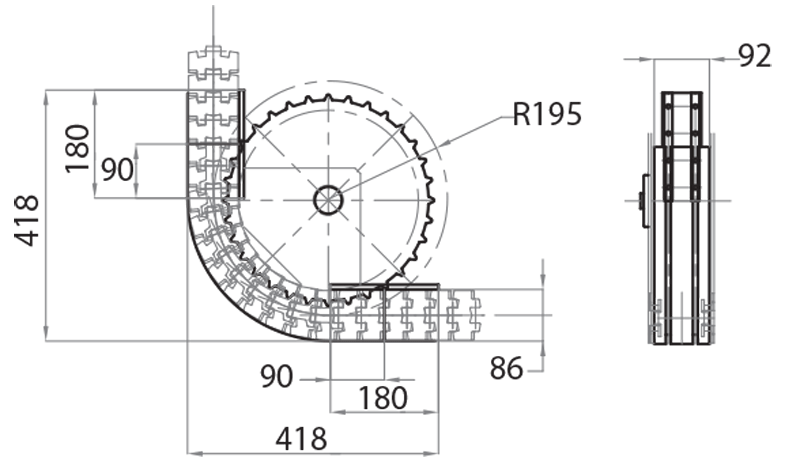

Return 90° idle curve average radius 200 mm

cod. AR232086-90

Return 90° idle curve average radius 200 mm

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Channel dimension (mm) Chain width (mm) Medium radius (mm) Angle
AR232086-90 86 82,5 200 90°
AR200086-90* 86 82,5 200 90°
* Pulley without teeth
AR232086-90 Return 90° idle curve average radius 200 mm AR232086-90 0.00€
AR200086-90 Return 90° idle curve average radius 200 mm (pulley without teeth) AR200086-90 0.00€
