Robust, light and economical
Conveyors with PVC belt are used in any production line and are characterized by extreme precision and attention to details.
Simple and reliable, they can move in the maximum silence and carry from small particulars to large structures, thanks to the possibility to be equipped with different types of motorization.The aluminium frame gives a high quality grade and allows the use of this conveyors even in food industry. All the parts are made and processed according to the requests and the environment in which they will be inserted.
Thanks to the many constructive possibilities, Alutec conveyor belts can be manufactured of any size, with fixed or adjustable guides, and with different types of motorization according to the type of application that have to perform.
The profile grooves allows the application of every kind of accessories to the conveyor belts. The whole range of Alutec conveyor belts can be built in aluminum or AISI 304 stainless steel, in order to be used also in food and pharmaceutical industries.
Belts with roller Ø20
These belts are suitable for transporting light and small materials. They are made from 18.5 x 90 or 18.5 x 180 mm aluminium profiles (or other dimensions on request). These conveyor belts are simple and economical, reliable and precise.

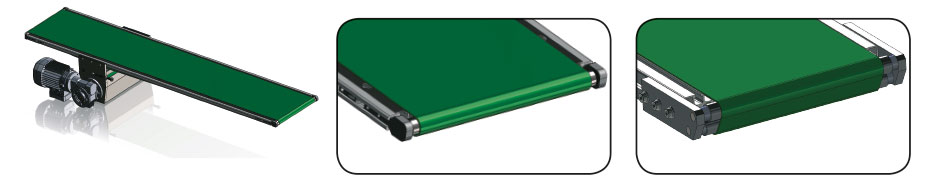

(in the center: STANDARD VERSION, on the right: VERSION WITH ROLLER PEN)
Belts with roller Ø50
This series of belts are made from 45 x 45 mm aluminium profiles, is suitable for transporting medium/heavy materials and is used in many production applications.

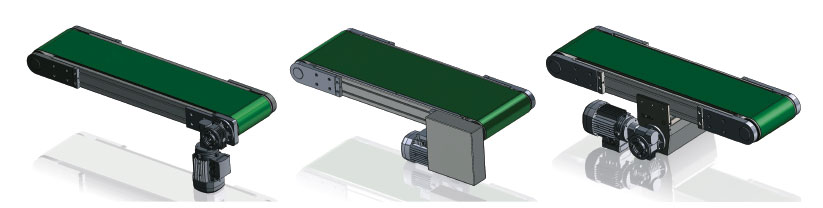

(on the left: DIRECT ENGINE, in the centre: RETURNED ENGINE, on the right: INTERMEDIATE ENGINE)
Belts with rollers Ø95
This is the largest conveyor belt series, with frames made of 45 x 90 mm aluminium profiles, particularly suitable for transporting heavy and bulky materials.

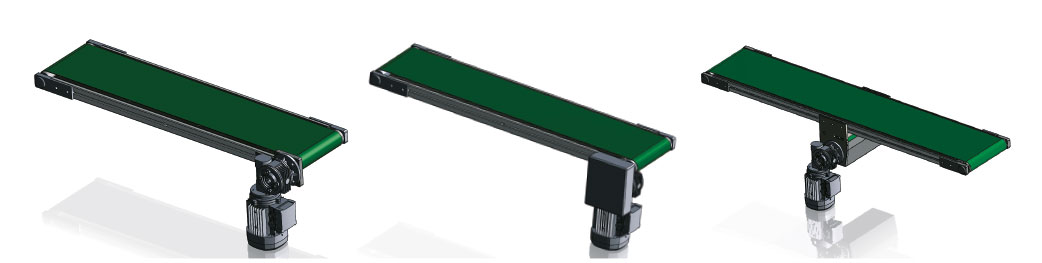

(on the left: DIRECT ENGINE, in the centre: RETURNED ENGINE, on the right: INTERMEDIATE ENGINE)
