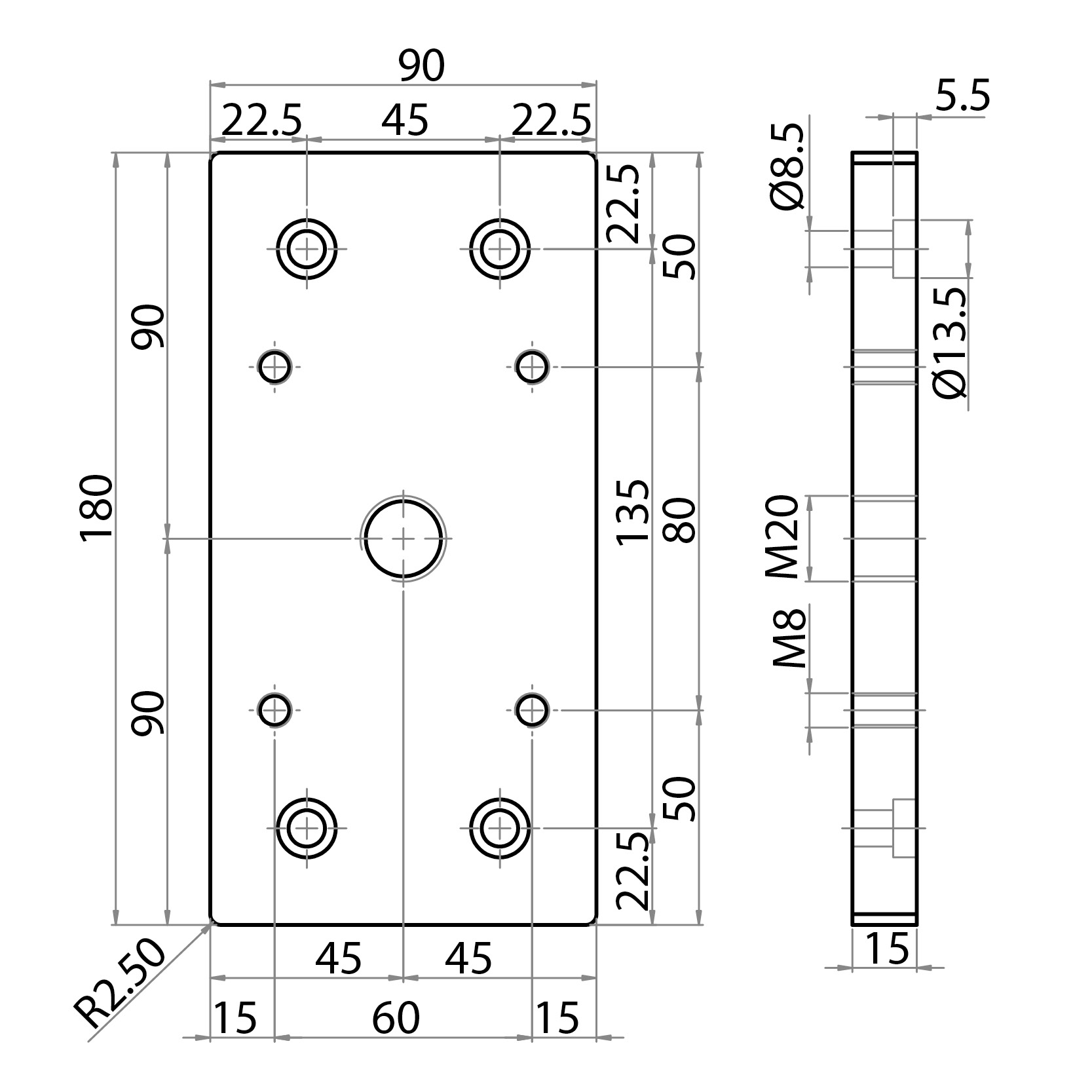

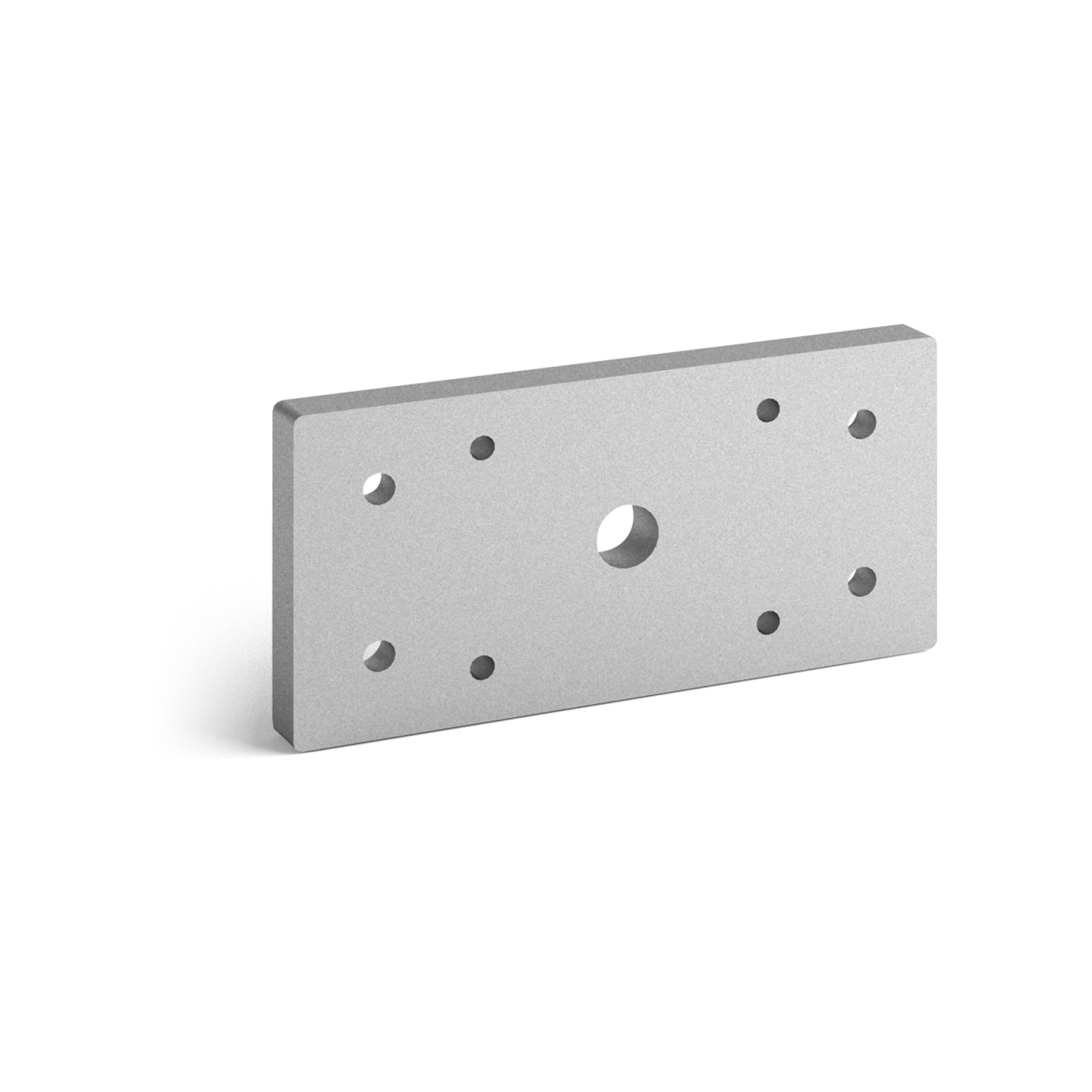

90x180 fixing flange for slot 8 profiles

cod. 529018

90x180 fixing flange for slot 8 profiles

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Function Profile type Weight (Kg)
529018 sand blasted
aluminium		 90x180 fixing flange for feet and wheels Ø125 90x180 mm 0,625
