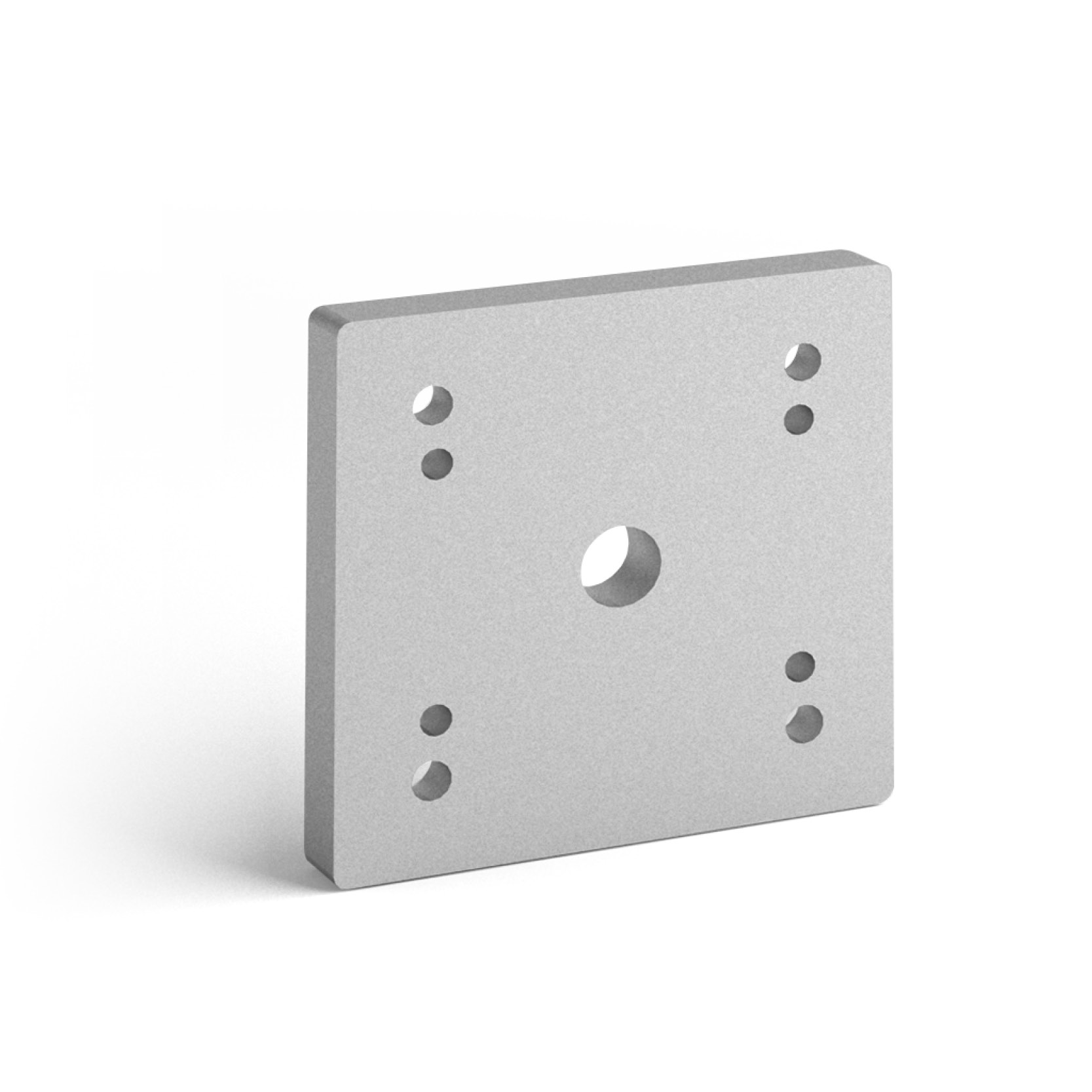

120x120 fixing flange for slot 8 profiles series 40

cod. 521212

120x120 fixing flange for slot 8 profiles series 40


Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Function Profile type Weight (Kg)
521212 sand blasted
aluminium
For mounting feet with M20 stem and Ø125 wheels 120x120 mm 0,552
