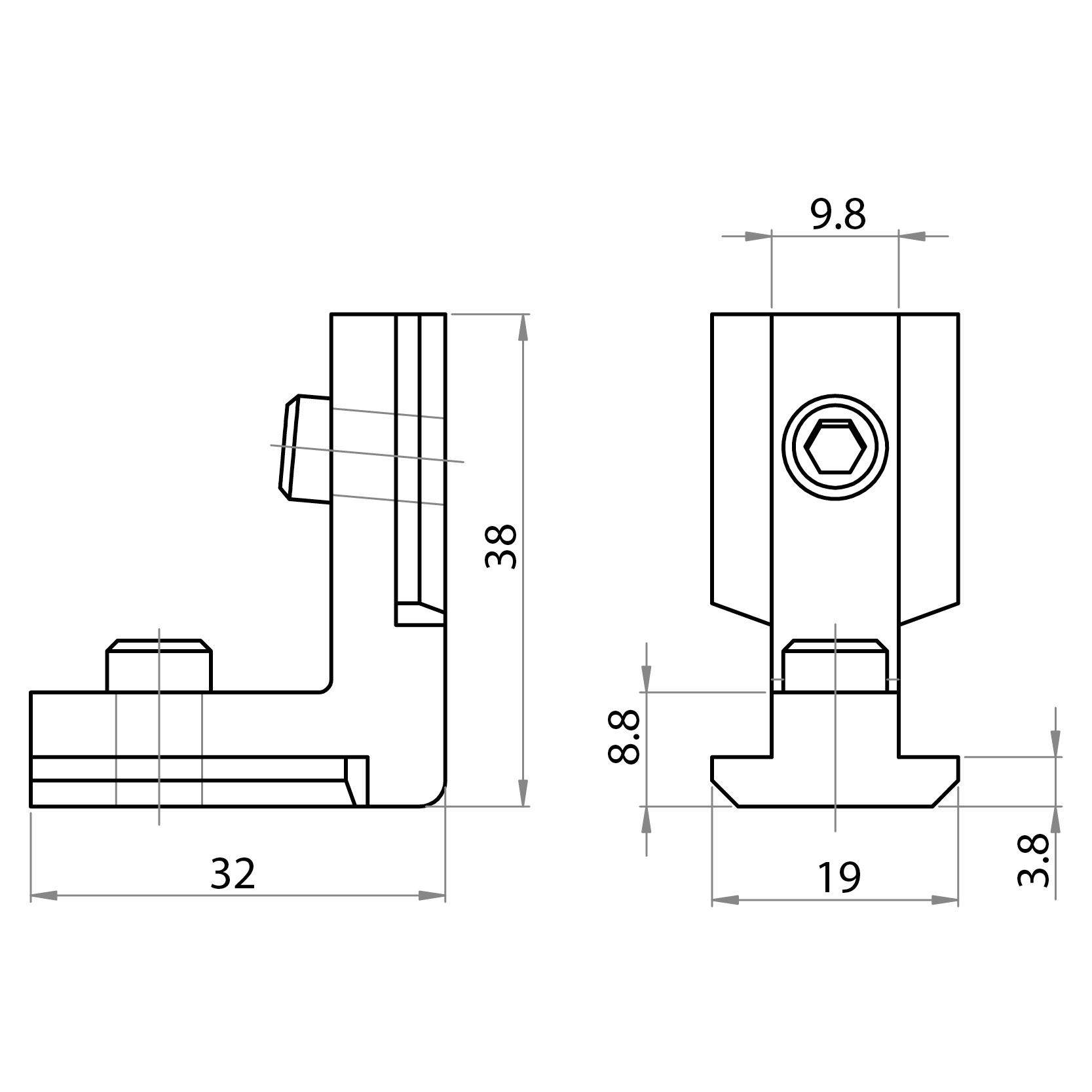

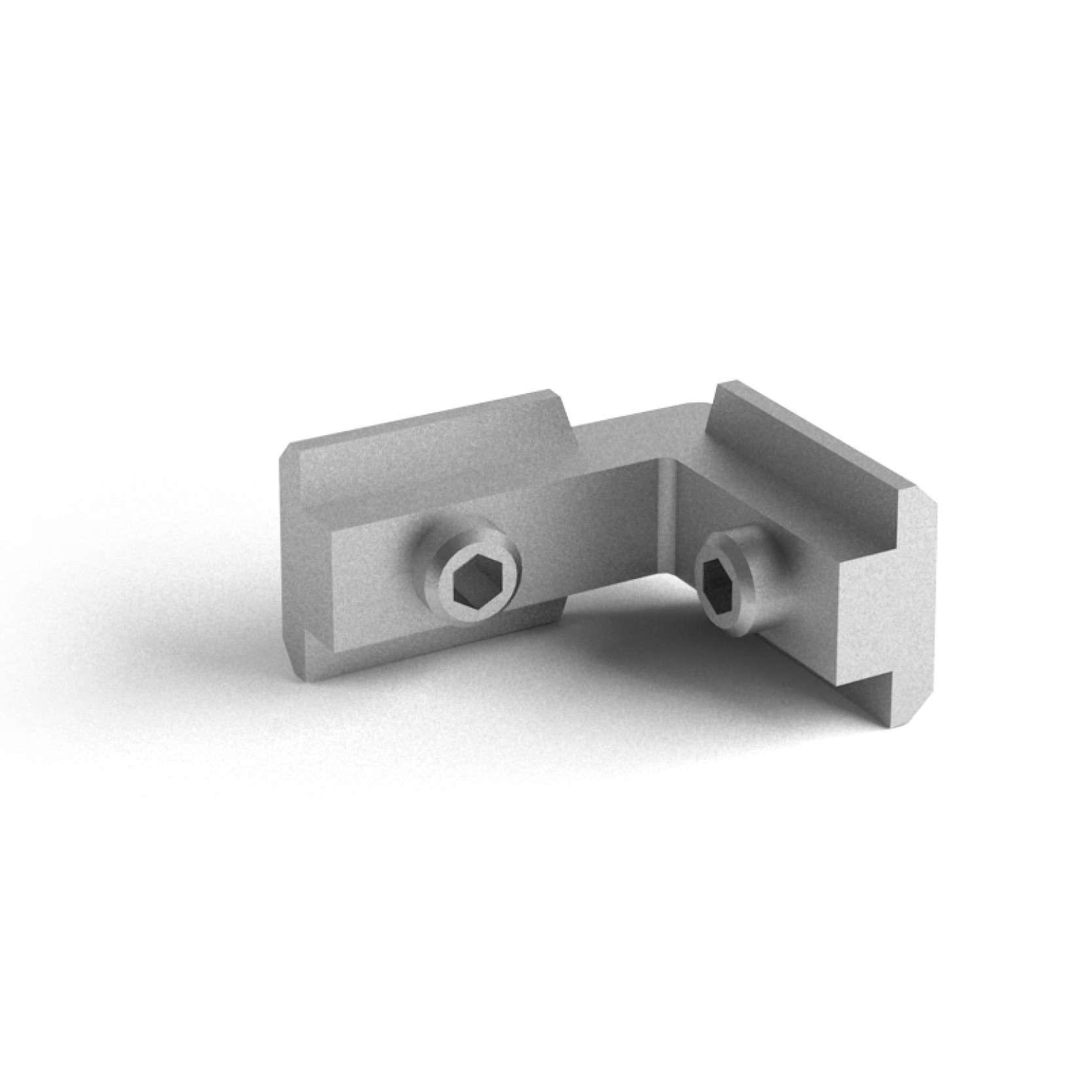

90° internal connection joint for profile 10mm slot series 45

cod. 321904

90° internal connection joint for profile 10mm slot series 45

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Assembly set Function Weight (Kg)
321904
galvanized
steel
 with 2 set screws
for no-drill fixing,
sliding positionings
and t-connections
 0,045
