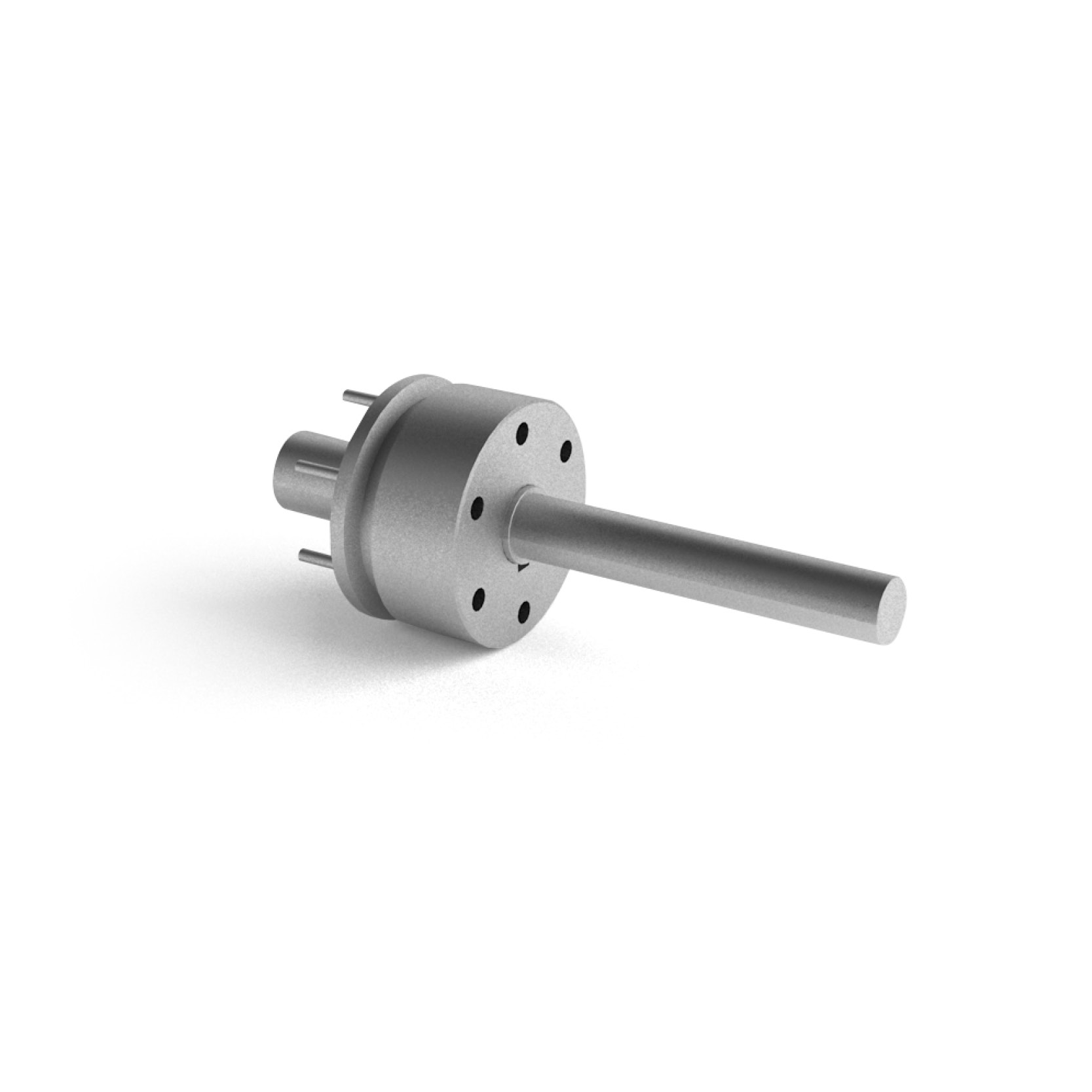

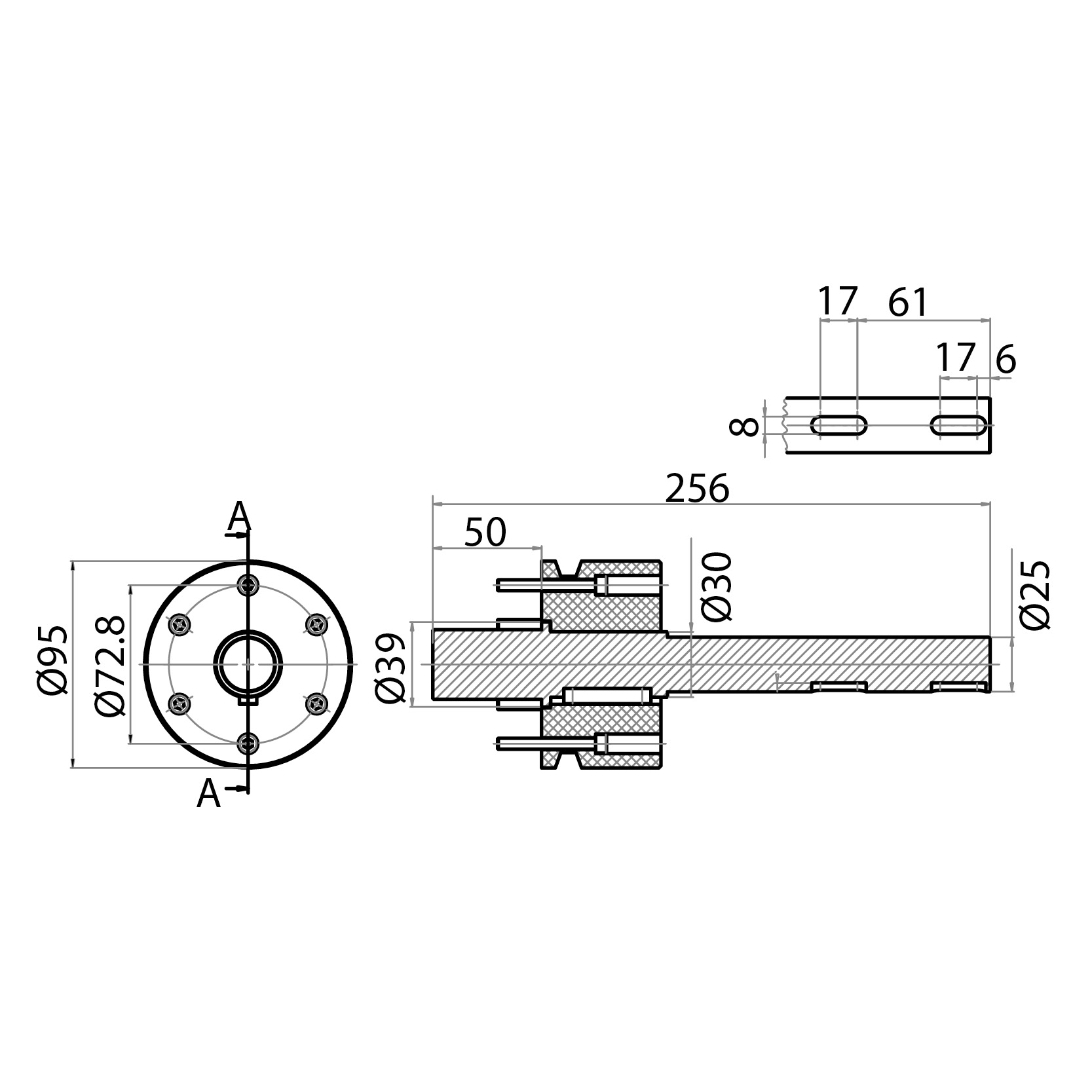

Ø95 mm drive cap for drive roller

cod. 909525

Ø95 mm drive cap for drive roller

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Gearmotor Assembly set Weight (Kg)
909525 steel/nylon

CH05 Chiaravalli

MVF49 Bonfiglioli

 6 screw M5x45 3,748
