21,5x21,5

cod. 102121

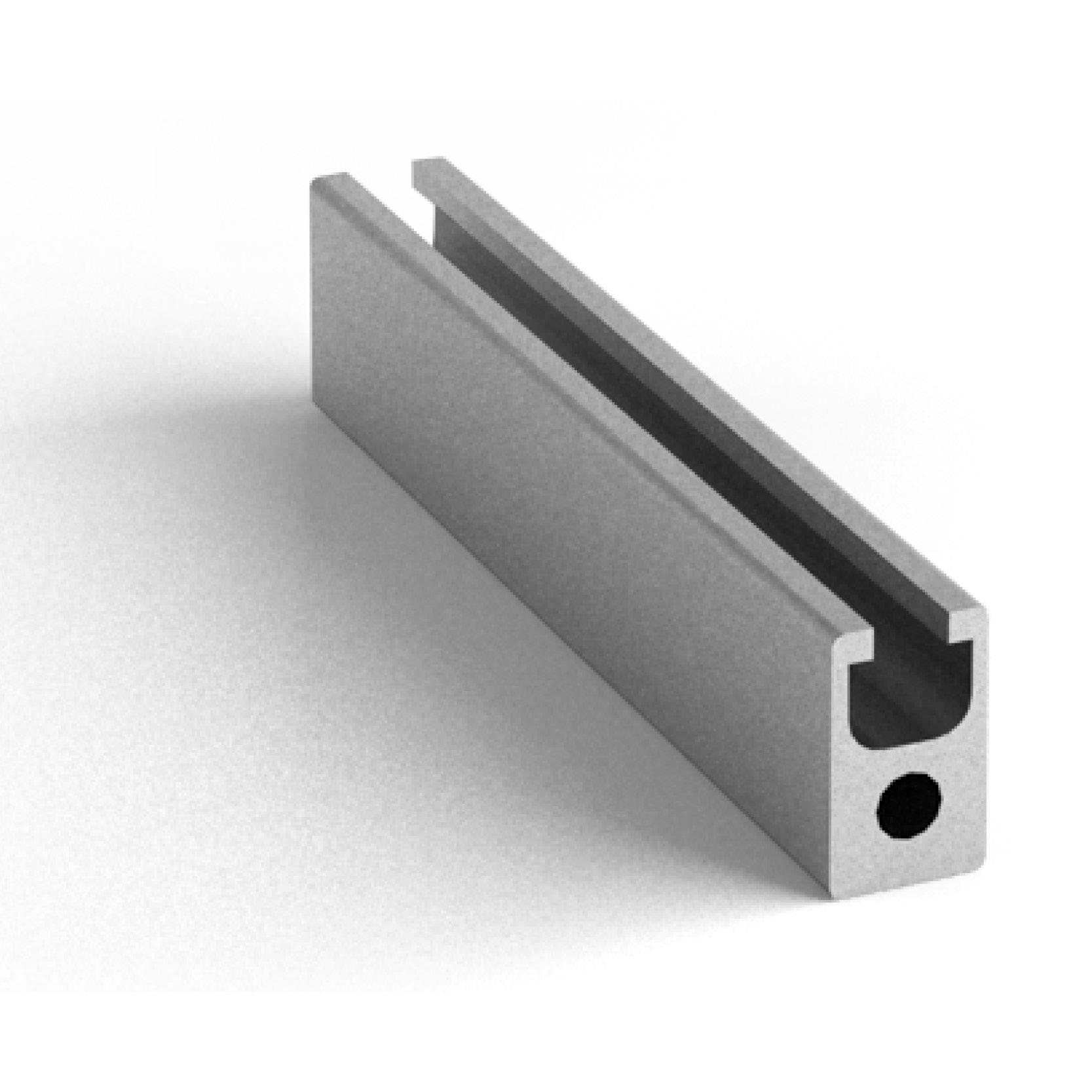

Profile 21,5x21,5, 6 mm groove

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Bending inertial moment lx Bending inertial moment ly Section modulus wx Section modulus wy Weight
 0,91 cm4 0,91  cm4  0,73 cm3  0,73 cm3  0,587 Kg/m
GENERAL CHARACTERISTICS
ALLOY EN AW-6060
PHYSICAL STATUS T6
MECHANICAL PROPERTIES UNI EN 755-2
CHEMICAL COMPOSITION UNI EN 573-3
SHAPE TOLERANCES UNI EN 12020-2
SURFACE TREATMENT ANODIC OXIDATION 15 µm
* On request: mill finish / black anodized / raw
Supply: bars with length 6010 mm
* Minimum supply required
