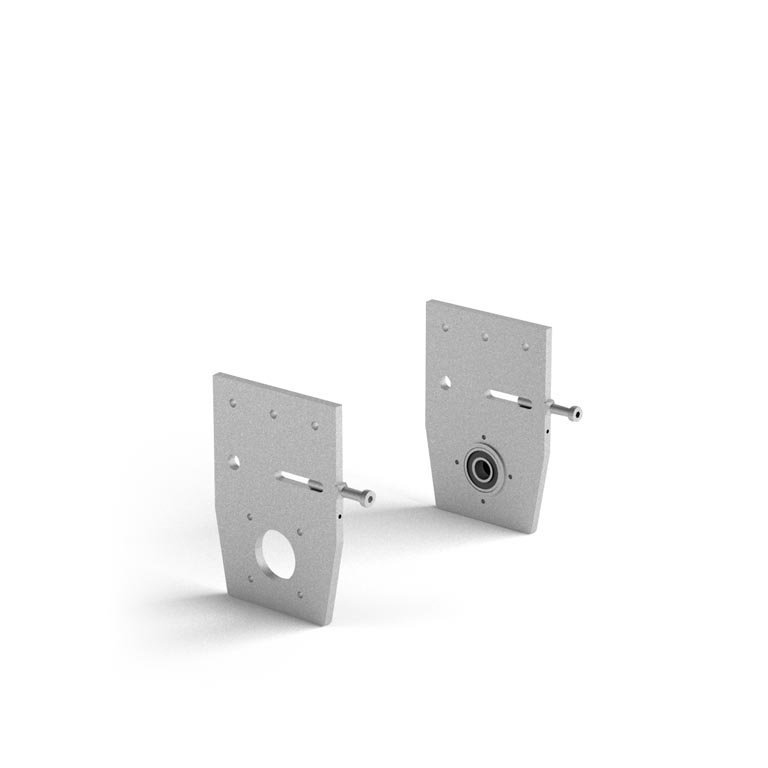

Flange kit for central group

cod. 904520

Flange kit for central group

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Function Assembly set Weight (Kg)
904520 sandblasted aluminium suited for MVF44F Bonfiglioli gearmotor complete with screw and cover with bearing 1,750
Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
