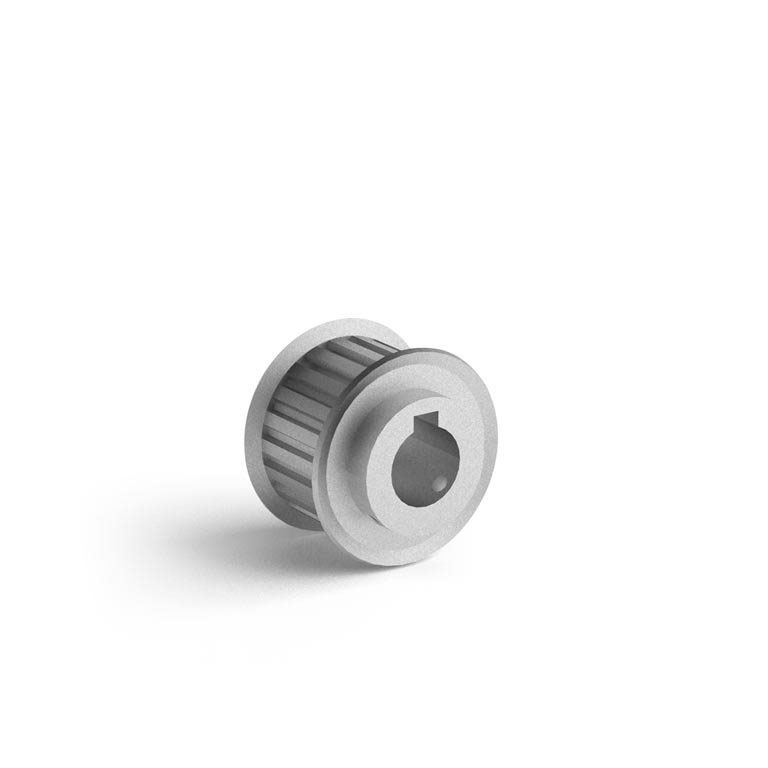

Aluminium toothed pulley for gear motors fastening

To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

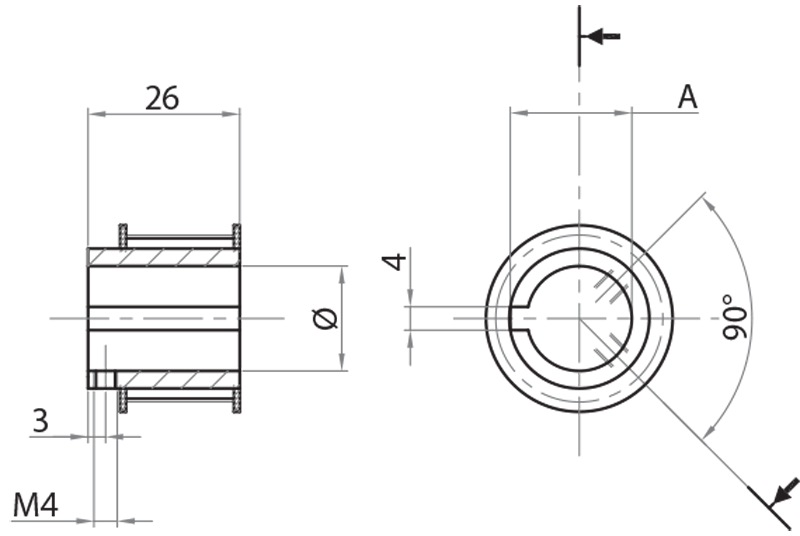

Art. No.	Material	Gear motor type	Shaft seat (mm) A	Hole Ø (mm)	Weight (Kg)	B	Teeth
904506	aluminium	Ø11 Minimotor	13,8	11	0,038	4	z18
901421	aluminium	Ø14 MVF30F Bonfiglioli	16,3	14	0,040	5	z21
901821	aluminium	Ø18 MVF44F Bonfiglioli	20,6	18	0,032	6	z21
