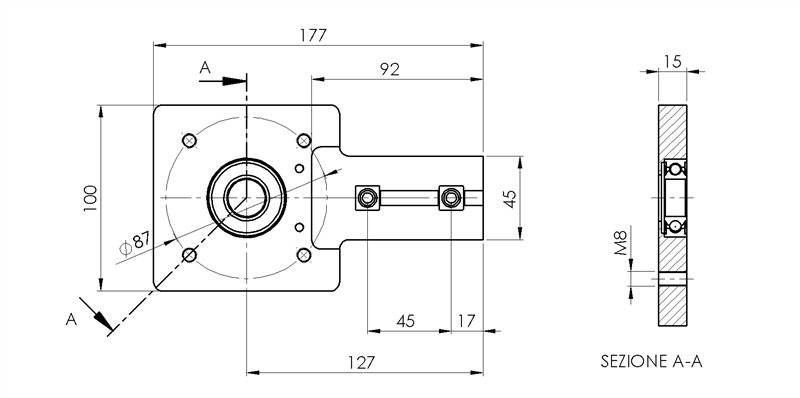

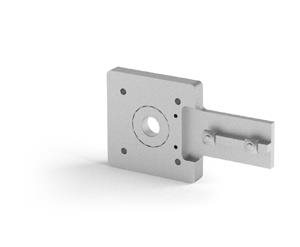

On axis motor mounting flange for MVF44F-NMRV040 fastening

cod. 904502-44

On axis motor mounting flange for MVF44F-NMRV040 fastening

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Assembly set Gearmotor type Weight (Kg)

904502-44

 sandblasted aluminium complete with bearing, screws and nuts MVF44F - NMRV040 1,350
