Material: Anodized aluminium profile; screw and nut made of steel; polyamide handwheel; zinc plated steel screws

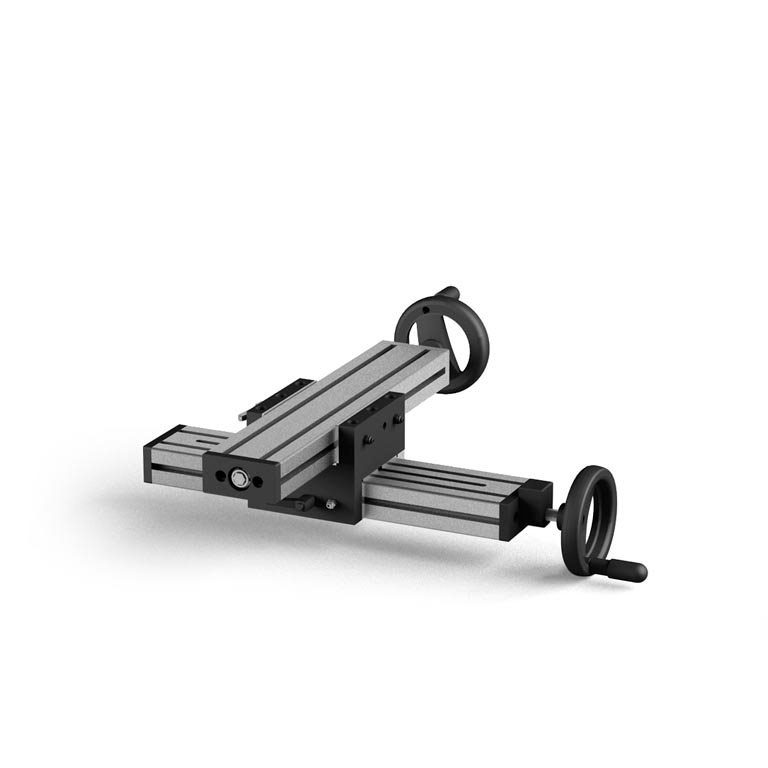

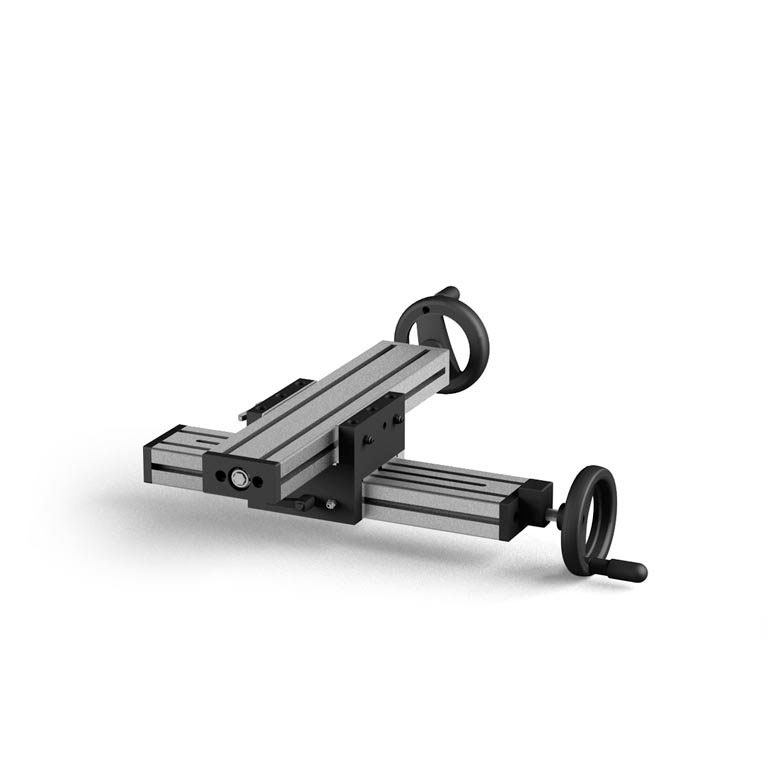

Function: For a rigid and precise accessories positioning on assembly or packaging lines along two cross axes
Screw pitch: 4 mm

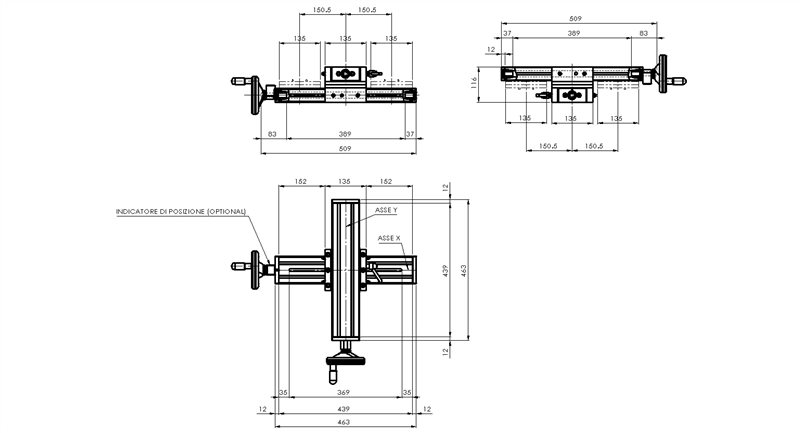

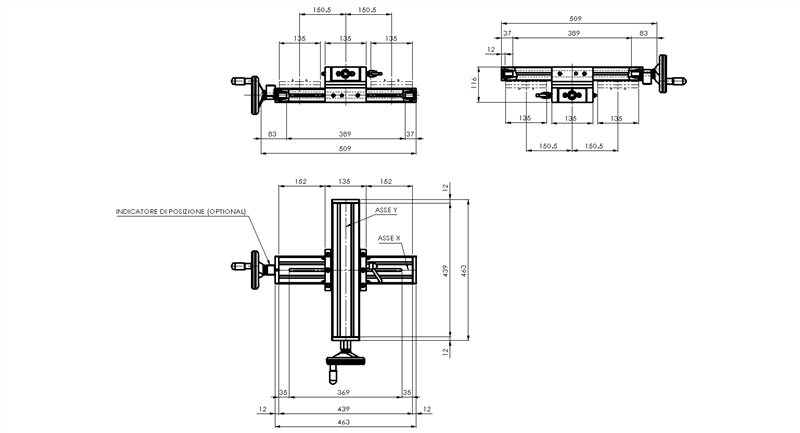

Standard stroke: 300 mm for each axis
Tailored stroke: When ordering indicate 042004C stroke axis1 + stroke axis2
Example: 042004C 400+500
Assembly set: With handwheel and clamp lever; with polyzene guides; analogical
Optional features: Clockwise (dx) or counterclockwise rotation (sx)
Position indicator: Direct drive, analog, black, four digits, numbers height 5 mm; when ordering indicate:
1) Positioner code
2) “ip” with direction of rotation (dx or sx)
Example: 042004/ipdx or 042004/ipsx
