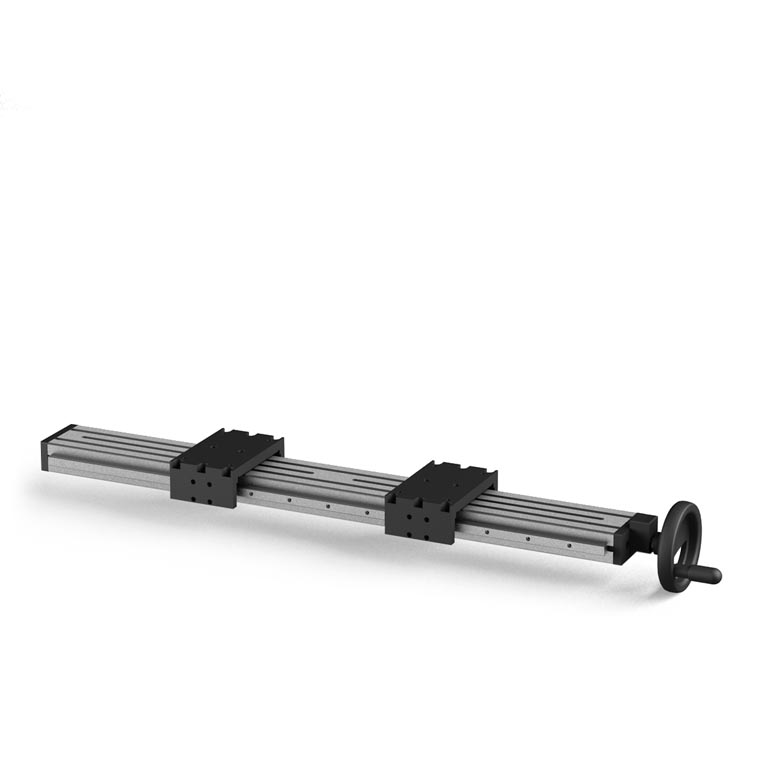

Material: Anodized aluminium profile; 022004C screw and nut made of steel; polyamide handwheel and clamp lever; zinc plated steel screws
Function: For accessories positioning on assembly or packaging lines and to modify both carriages’ format with a single input
Screw pitch: 4 mm (dx and sx)
Standard stroke: 300 + 300 mm
Tailored stroke: When ordering, indicate 022004C stroke + stroke
Example: 022004C 300+300
Assembly set: With handwheel and clamp lever; with polyzene guides; analogical
Optional features: Clockwise (dx) or counterclockwise rotation (sx)
Position indicator: Direct drive, analog, black, four digits, numbers height 5 mm; when ordering indicate:
1) Positioner code
2) “ip” with direction of rotation (dx or sx)
Example: 022004/ipdx or 022004/ipsx
