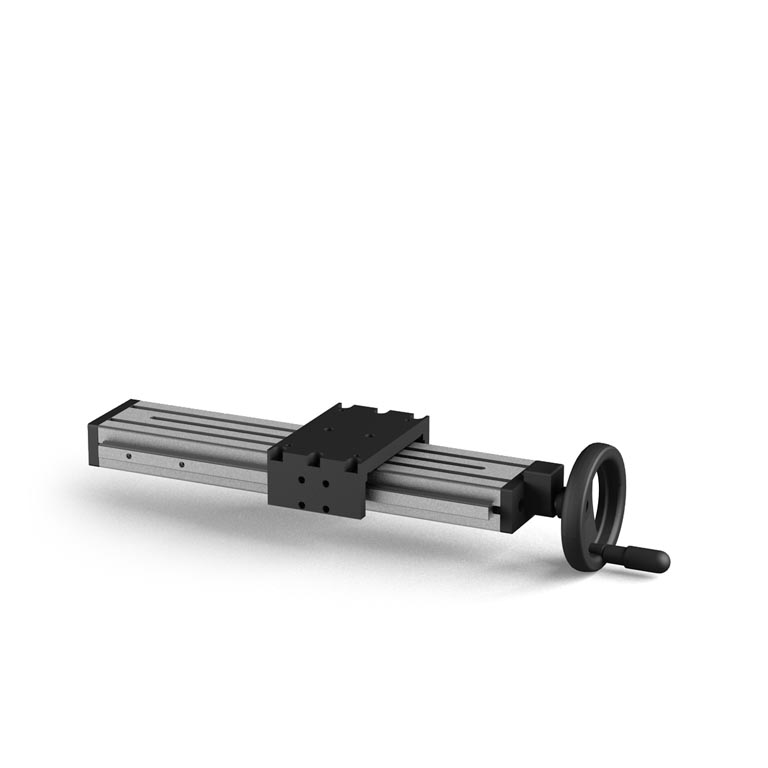

Material: Anodized aluminium profile; 012004PC screw and nut made of steel; polyamide handwheel; zinc plated steel screws
Function: For accessories positioning on assembly or packaging lines along a single axis
Screw pitch: 4 mm
Standard stroke: 300 mm
Tailored stroke: When ordering, indicate stroke
Assembly set: With handwheel; with linear recirculating balls guideway; analogical
Optional features: Clockwise (dx) or counterclockwise rotation (sx)
Position indicator: Direct drive, analog, black, four digits, number height 5 mm; when ordering indicate:
1) Positioner code
2) “ip” with direction of rotation (dx or sx)
Example: 012004P/ipdx or 012004P/ipsx
