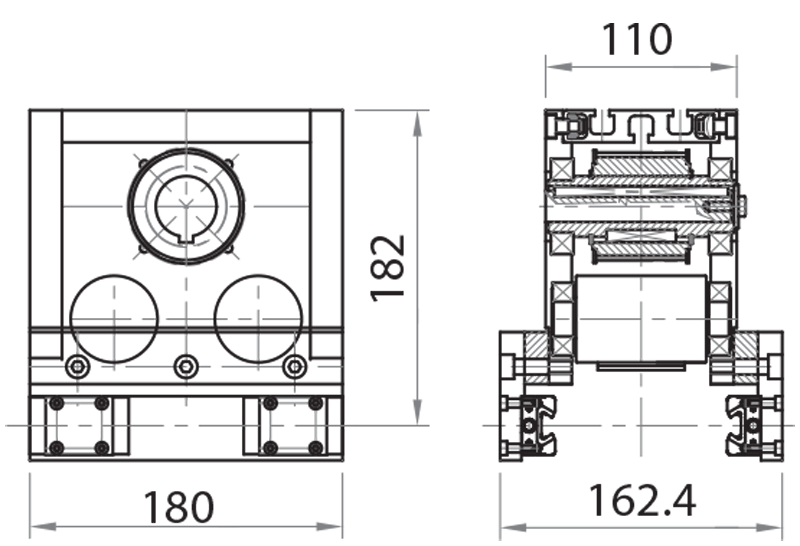

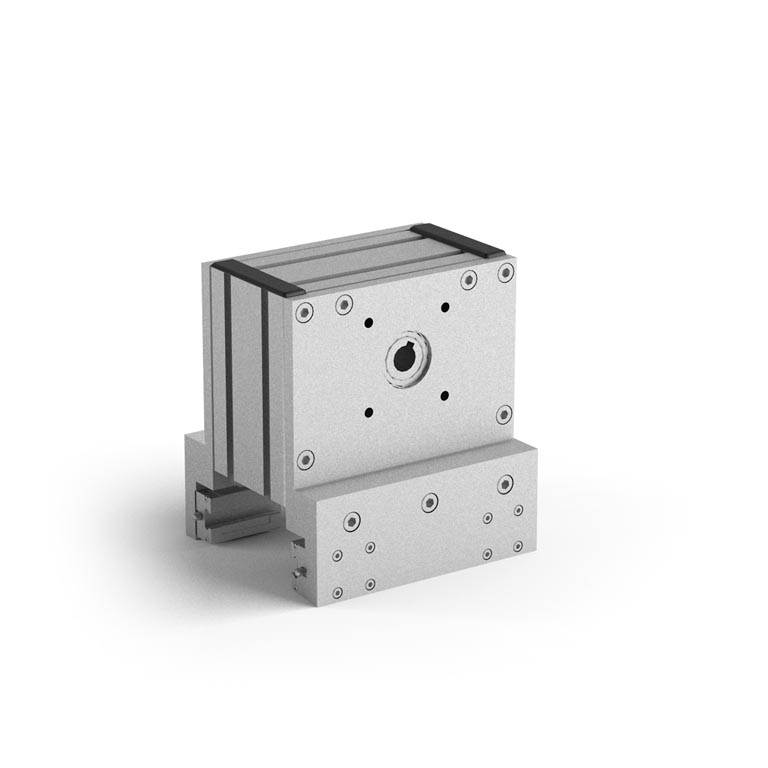

Drive unit with carriages for M08250P

cod. M08290P

Drive unit with carriages for M08250P

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Pulleys Belt type Shaft and gear motor fastening (mm) Guide type
M08290P



z18
dp=57,30
de=55,45



 50AT10

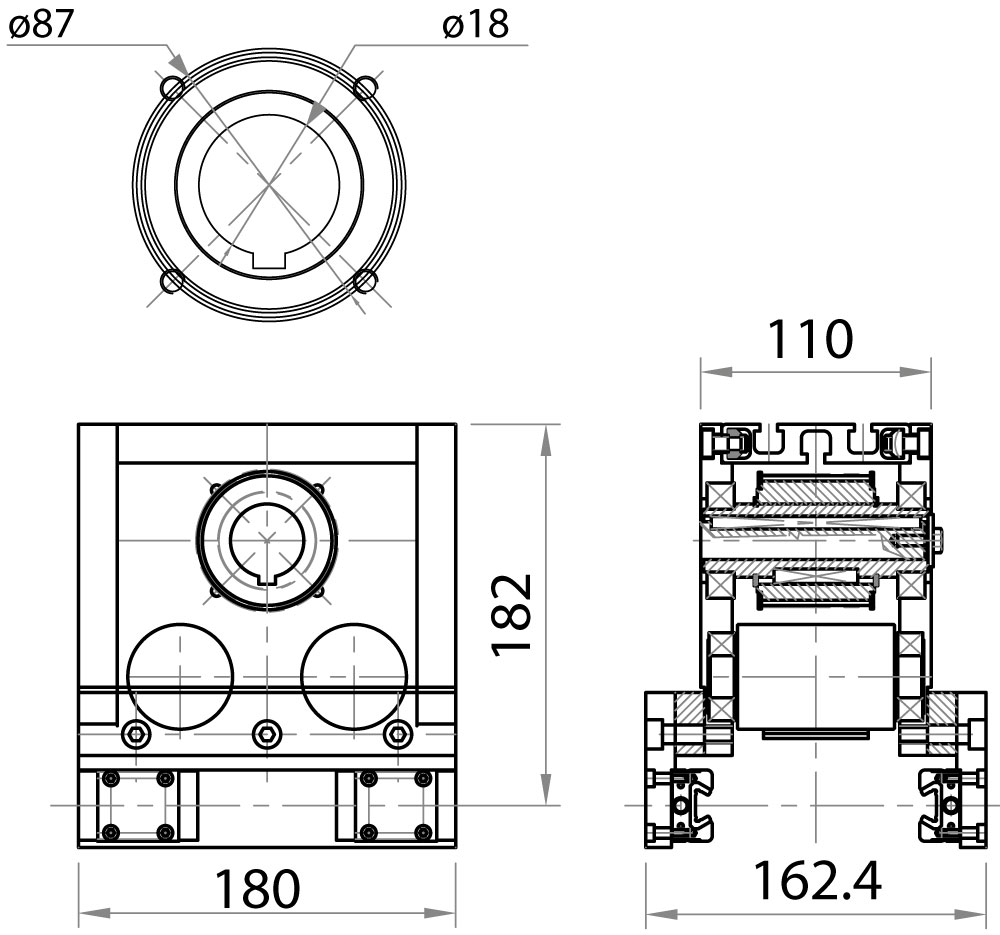

Ø18 - Ø87

 linear guideway
Suitable for MVF44 Bonfiglioli fastening.
Available also for MVF49 Bonfiglioli gear motor.
