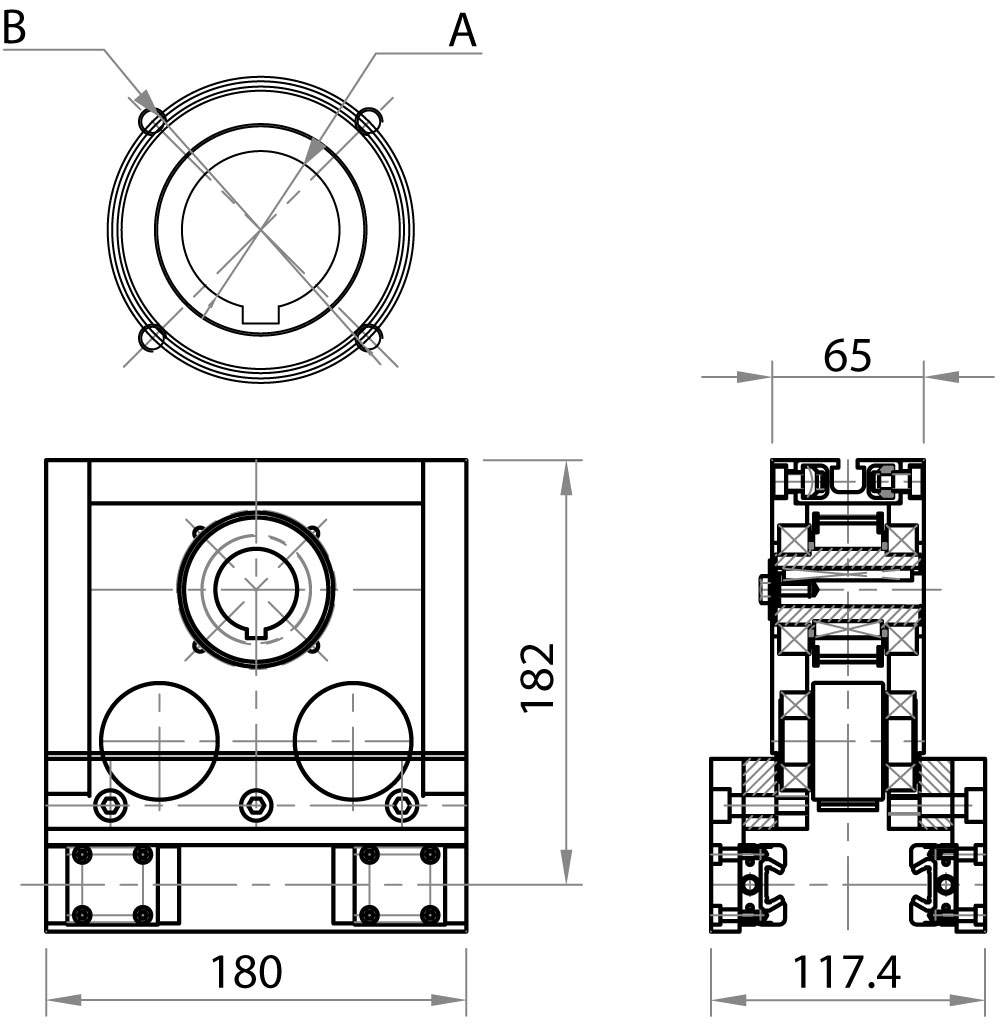

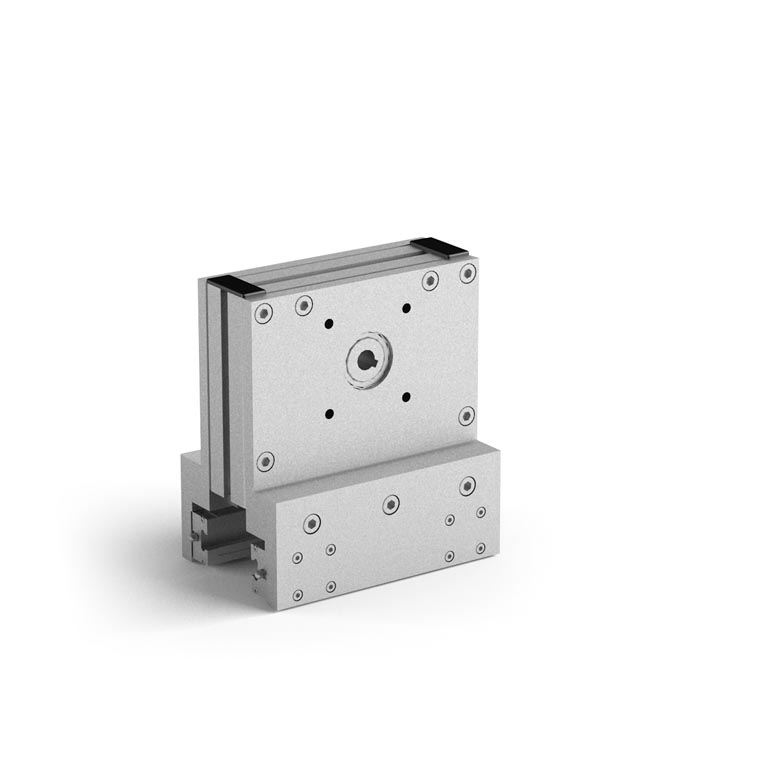

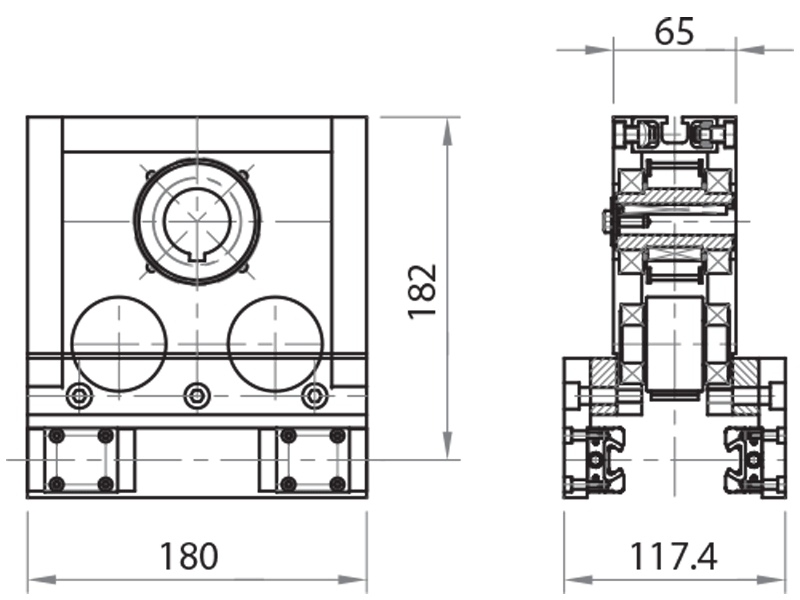

Drive unit with carriages for M08216P and M08225P

cod. M08245P-16

Drive unit with carriages for M08216P and M08225P

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Pulleys Belt type Shaft and gear motor fastening (mm) Guide type
M08245P-16



z18
dp=57,30
de=55,45 mm



 16AT10

Ø14 - Ø68

 linear guideway
M08245P-25



z18
dp=57,30
de=55,45 mm



 25AT10

Ø18 - Ø87

 linear guideway
Suitable for MVF30 and MVF44 fastening
