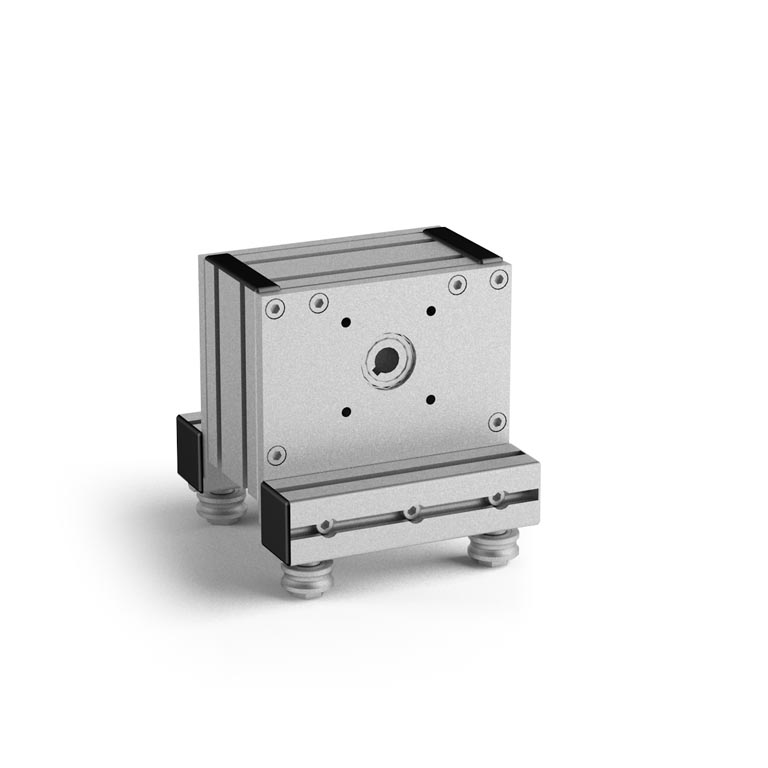

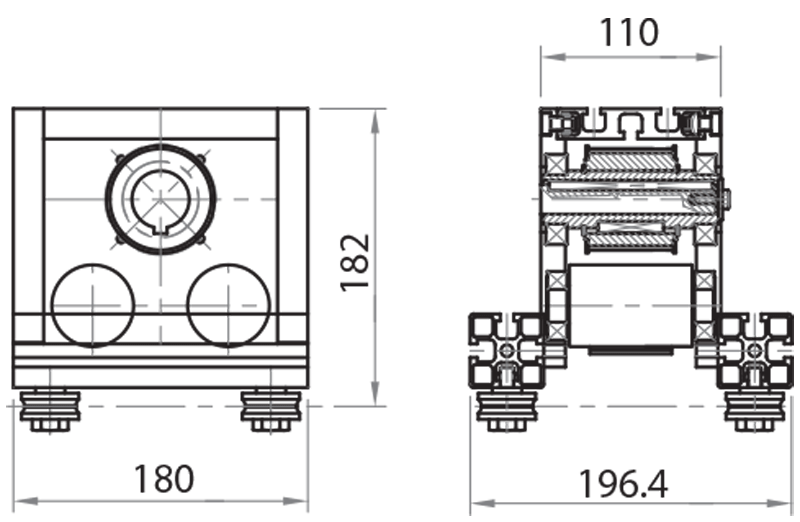

Drive unit for M08250

cod. M08290

Drive unit for M08250

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Pulleys Belt type Shaft and gear motor fastening (mm) Guide type (mm)
M08290



z18
dp=57,30
de=55,45



 50AT10

Ø18 - Ø87

 Ø12
Suitable for MVF44 Bonfiglioli fastening.
Available also for MVF49 Bonfiglioli gear motor.
