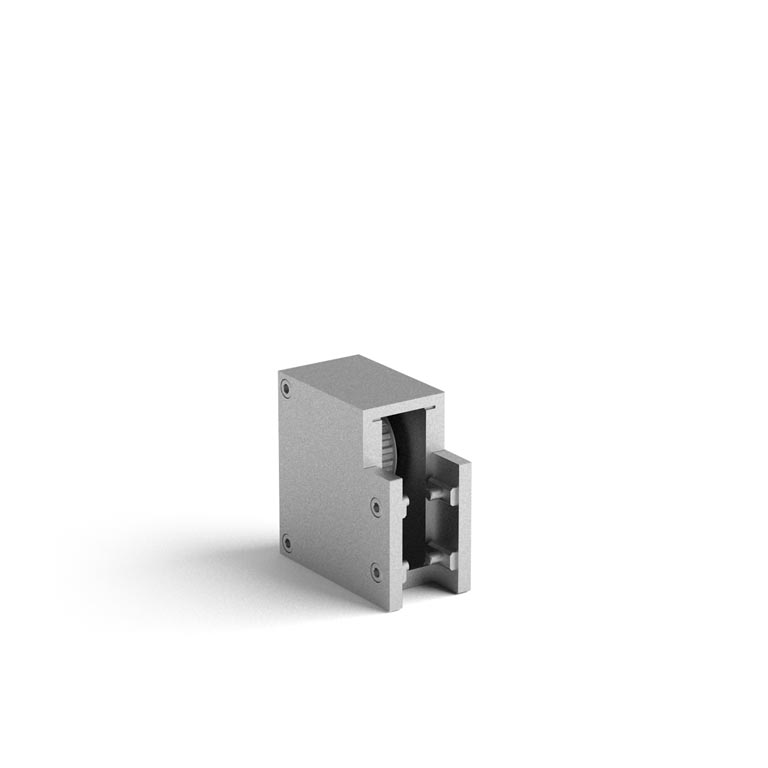

Reverse unit for 810001

cod. 804590

Reverse unit for 810001

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Pulleys Belt type Weight (Kg)
804590 aluminium and steel z 20
pitch Ø=63,66 mm
external Ø=61,80 mm		 16AT10 1,960
Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
