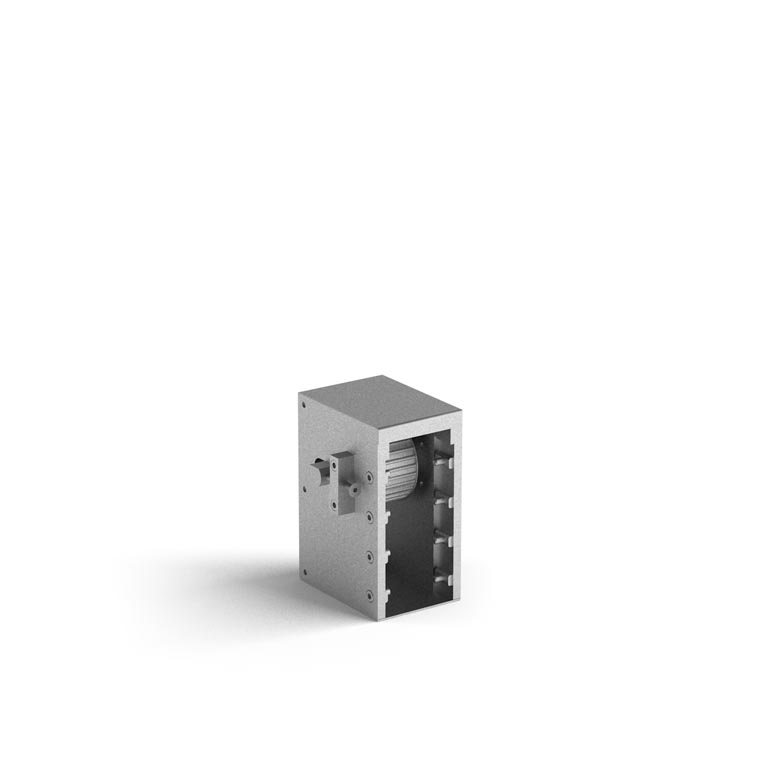

Reverse unit for 819094

cod. 809053

Reverse unit for 819094

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Pulleys Type Weight (Kg)
809053 aluminium and steel z 30
pitch Ø=95,49 mm
external Ø=93,65 mm		 for belt 50AT10 4,400
