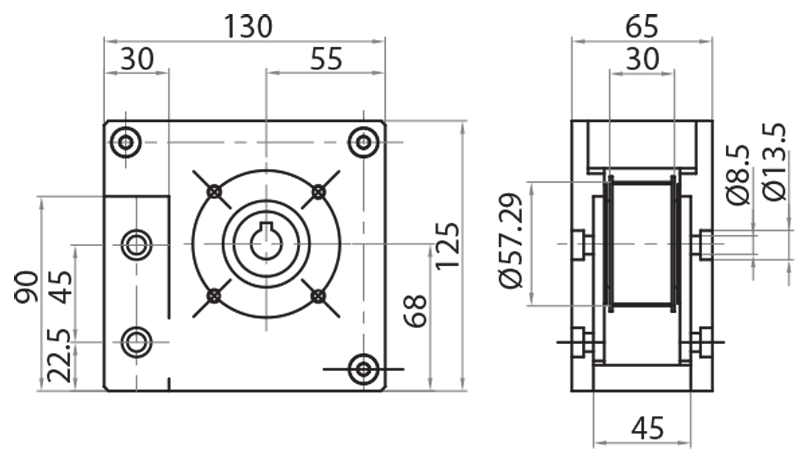

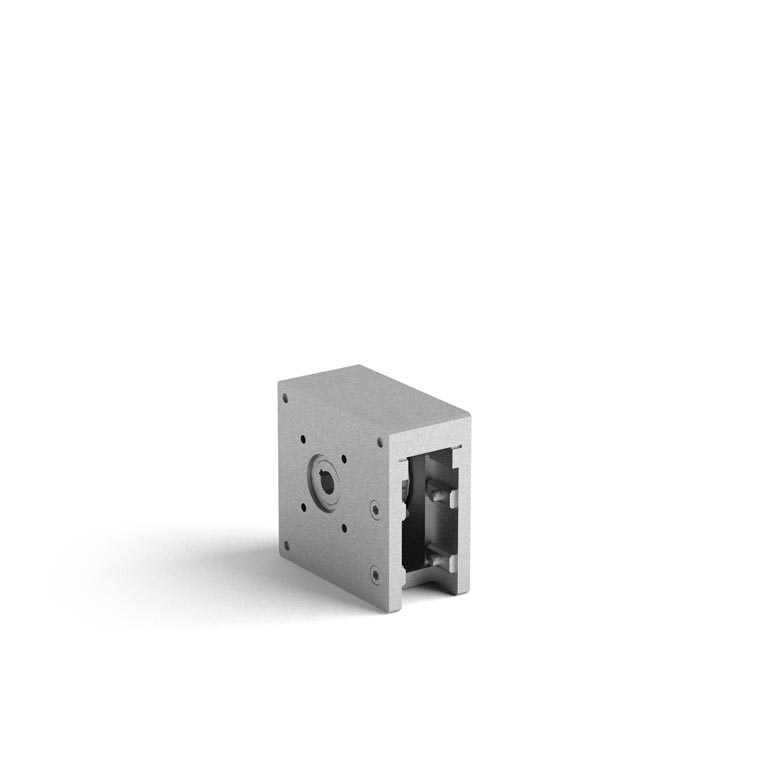

Drive head for 810025 and 810025P

cod. 804525

Drive head for 810025 and 810025P

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Pulleys Shaft and gear motor fastening (mm) Type Weight (Kg)
804525 aluminium and steel z 18
dp=57,30 mm
de=55,45 mm		 Ø14 - Ø68 for belt 25AT10 2,2
804525-18 aluminium and steel Ø18 - Ø87 for belt 25AT10 2,2
Suitable for MVF30 and MVF44 fastening
