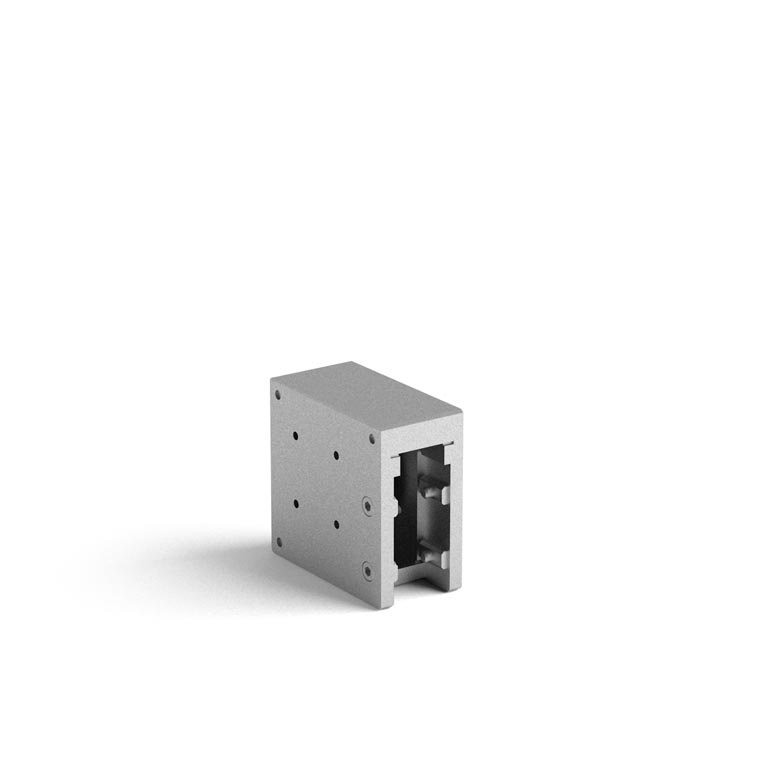

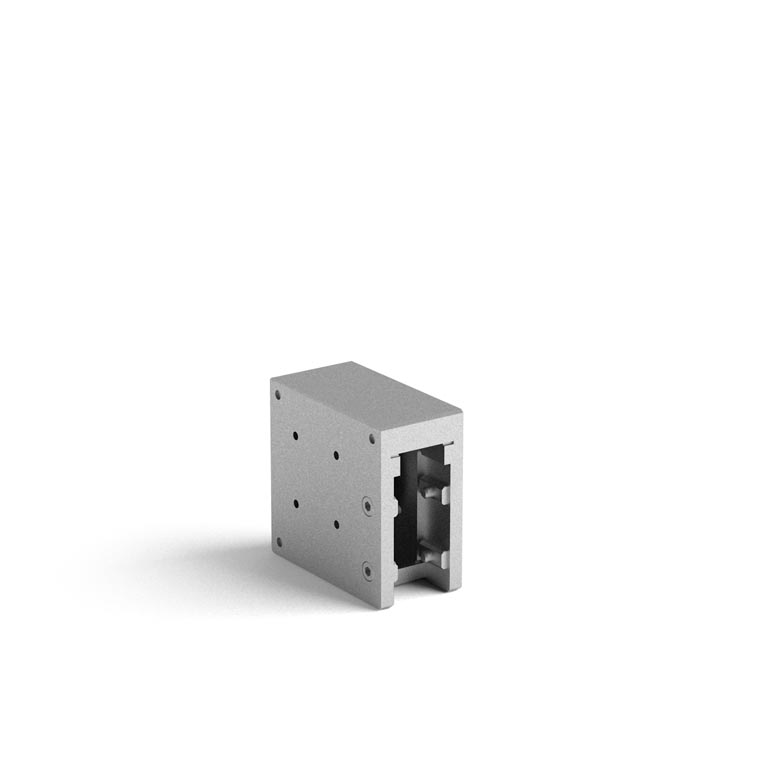

Reverse unit for 810016 and 810016P

cod. 804517

Reverse unit for 810016 and 810016P

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

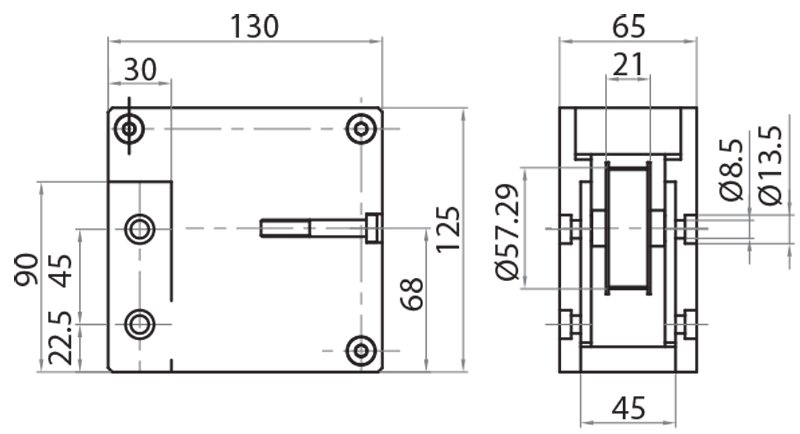

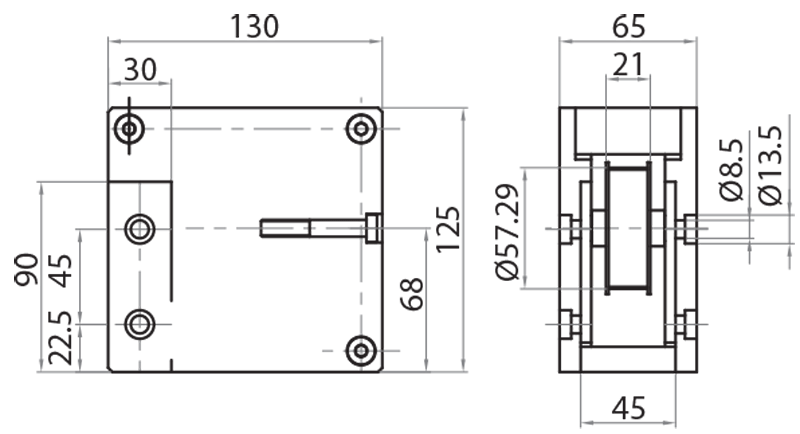

Art. No. Material Pulleys Type Weight (Kg)
804517 aluminium and steel z 18
pitch Ø=57,30 mm
external Ø=55,45 mm		 for belt 16AT10 1,800
