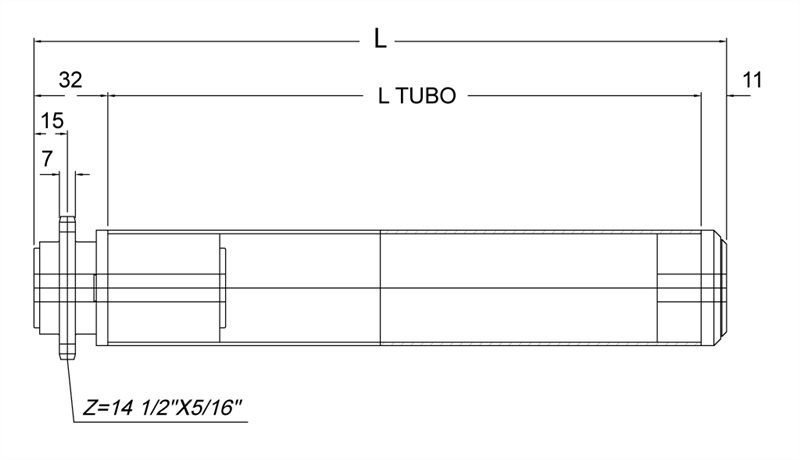

| Art. No. | Material | Ø (mm) | Thickness (mm) | Min. L (mm) | Max L (mm) |
|---|---|---|---|---|---|
| 905300-L | aluminium | external 50, internal 47 | 1,5 | 118 | 800 |
| 905301-L | zinc plated iron | external 50, internal 47 | 1,5 | 118 | 800 |
| 905302-L | stainless steel | external 50, internal 47 | 1,5 | 118 | 800 |
| 905303-L | PVC | external 52, internal 47 | 2,5 | 118 | 300 |
Contact our Technical Department for special requirements regarding thickness, length or load capacity.
