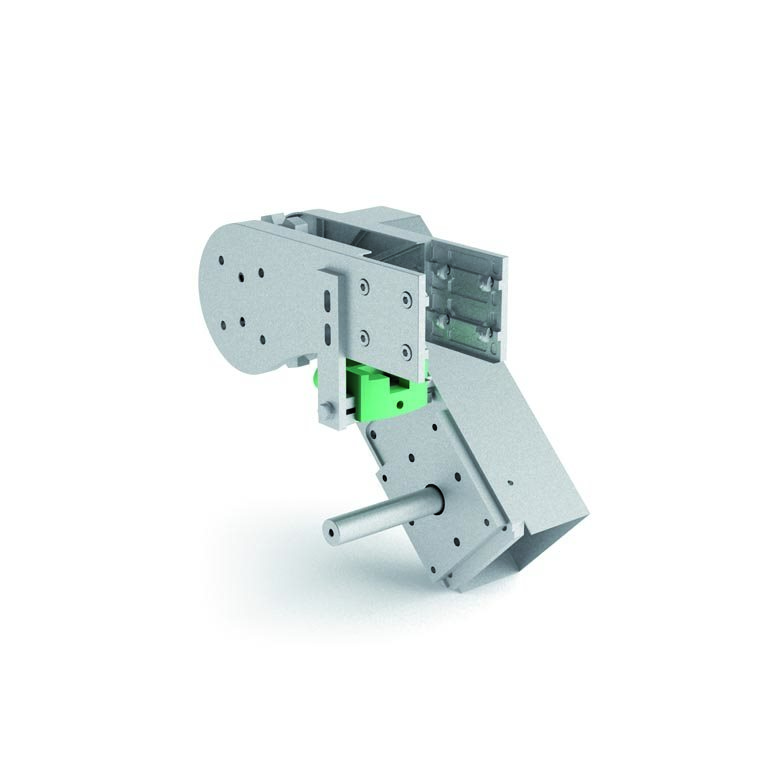

Motorization with countershaft

cod. ATR12086

Reversed drive motor available in right-hand (ATR12086DX) and left-hand (ATR12086SX) versions

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

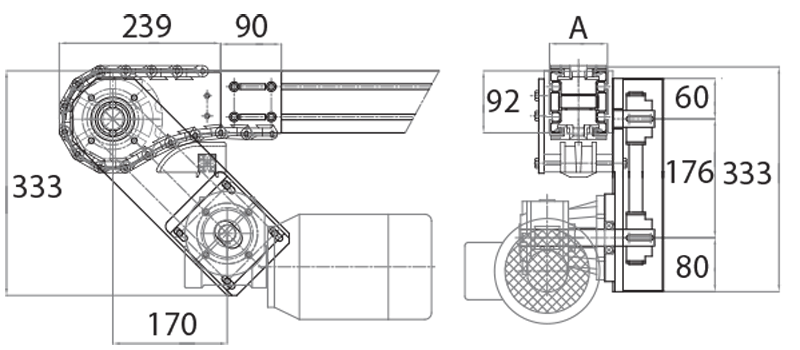

Art. No. Channel dimension (mm) Chain width (mm) A (mm)
ATR12086 86 82,5 86
ATR12127 127 114,3 127
ATR12196 196 190,5 196
ATR12259 259 254 259
ATR12314 314 304,8 314
ATR12086 Motorization with countershaft for channel 86 mm ATR12086 0.00€
ATR12127 Motorization with countershaft for channel 127 mm ATR12127 0.00€
ATR12196 Motorization with countershaft for channel 196 mm ATR12196 0.00€
ATR12259 Motorization with countershaft for channel 259 mm ATR12259 0.00€
ATR12314 Motorization with countershaft for channel 314 mm ATR12314 0.00€
