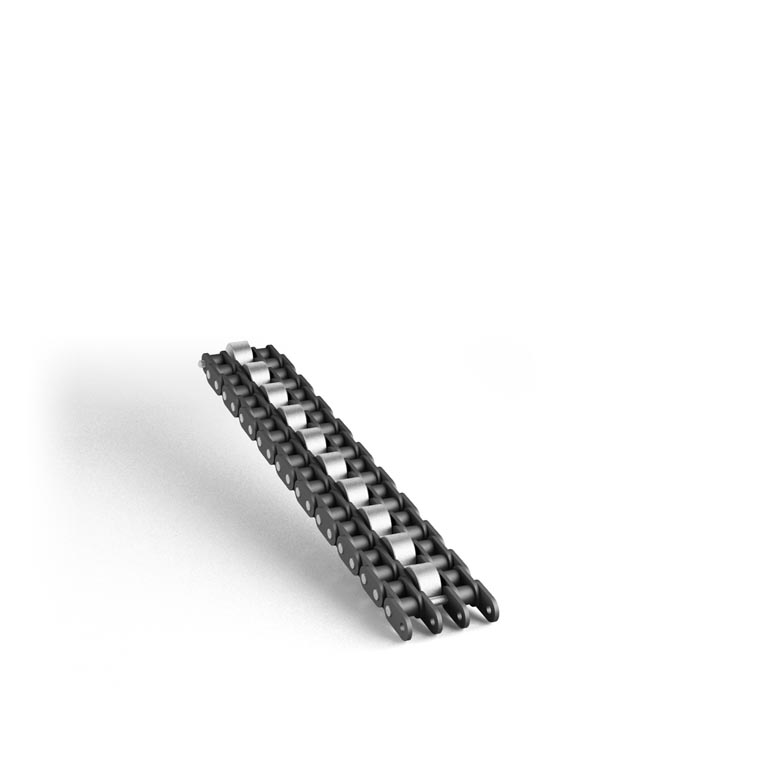

3/8" fly-roller chains

cod. 939900-D

3/8" fly-roller chains

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Supply size Dimensions Tensile medium strength (Kg) Weight
939900 steel chain - length on demand pitch 3/8" 1900 6,8 Kg/m
939901 steel junction - single piece pitch 3/8" 1900 0,018 Kg
939900-D delrin chain - length on demand pitch 3/8" 1900 5,1 Kg/m
939901-D delrin junction - single piece pitch 3/8" 1900 0,012 Kg
