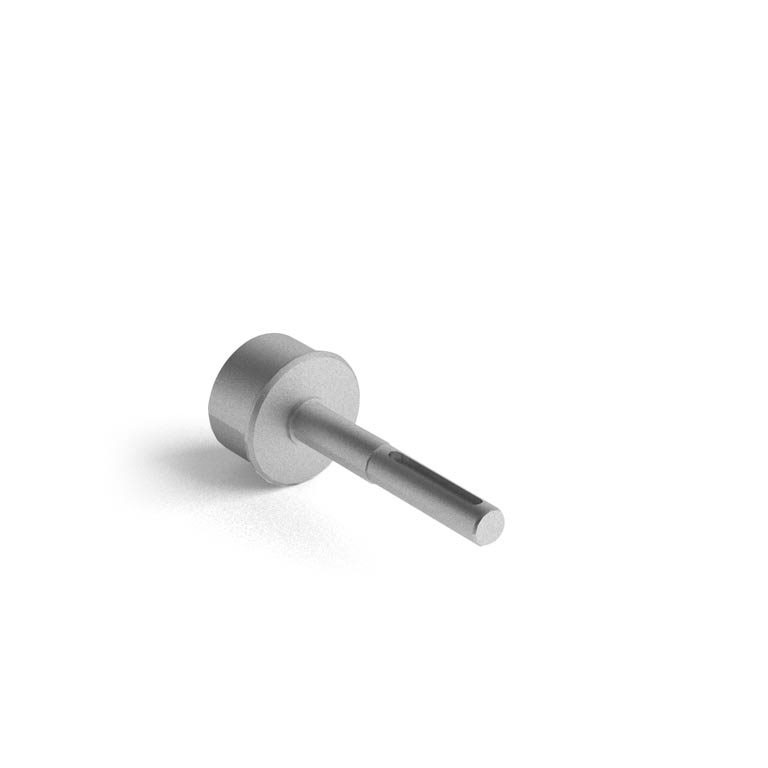

Direct drive roller holder (Bonfiglioli reducers)

To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

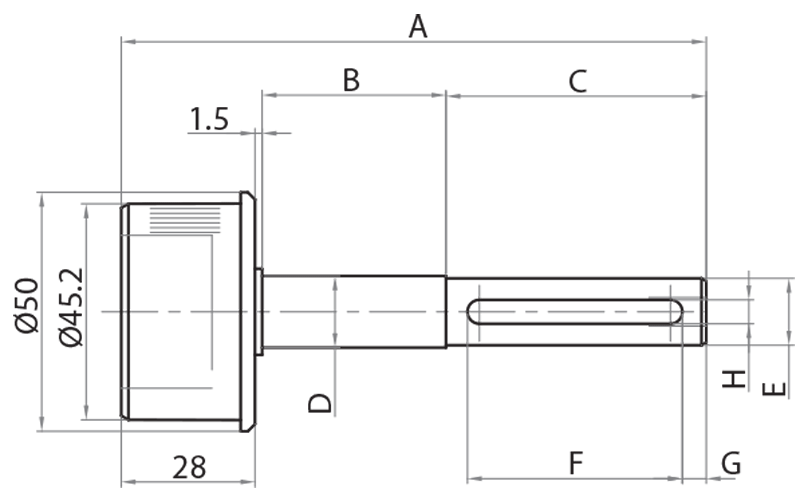

Art. No.	Material	Gear motor type	Function	Weight (Kg)	A	B	C	D	E	F	G	H
904517	zinc plated steel	MVF30F Bonfiglioli	for Ø50 mm roller realization with direct motorization system	0,336	122,5	38,5	54,3	15	14	45	5	5
904518	zinc plated steel	MVF44FA Bonfiglioli	for Ø50 mm roller realization with direct motorization system	0,517	166,5	60	77	20	18	45	10	6
904518-F	zinc plated steel	MVF44F Bonfiglioli	for Ø50 mm roller realization with direct motorization system	0,444	135	42	63,5	20	18	45	5	6
