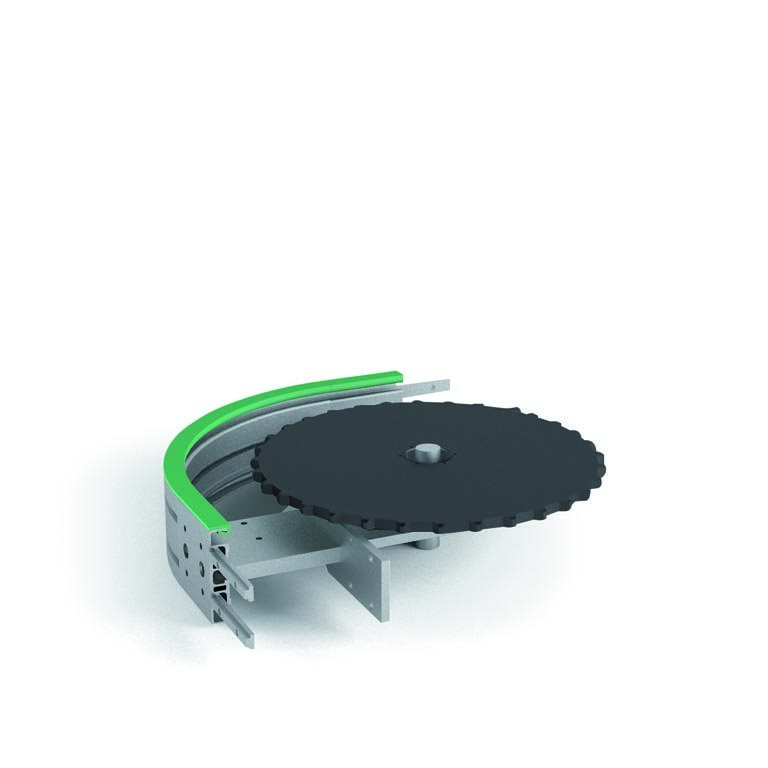

One way 90° idle curve average radius 200 mm (tire without teeth)

cod. AR100127/90

One way 90° idle curve average radius 200 mm (tire without teeth)

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

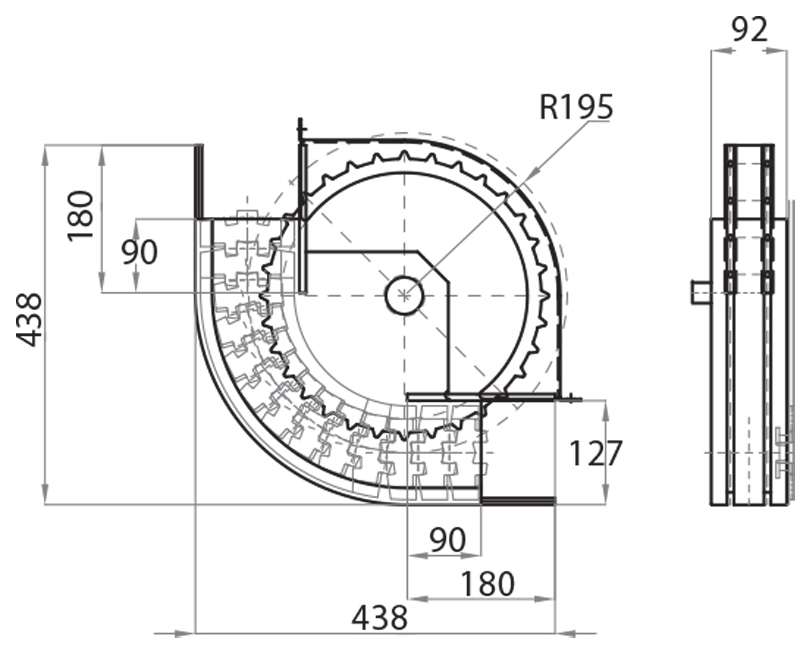

Art. No. Channel dimension (mm) Chain width (mm) Medium radius (mm) Angle
AR132127/90 127 114,3 200 90°
AR100127/90* 127 114,3 200 90°
* Tire without teeth
