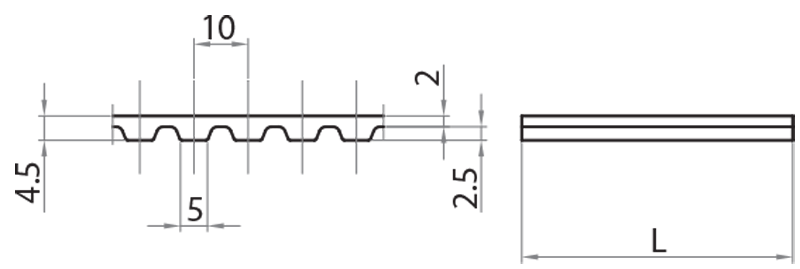

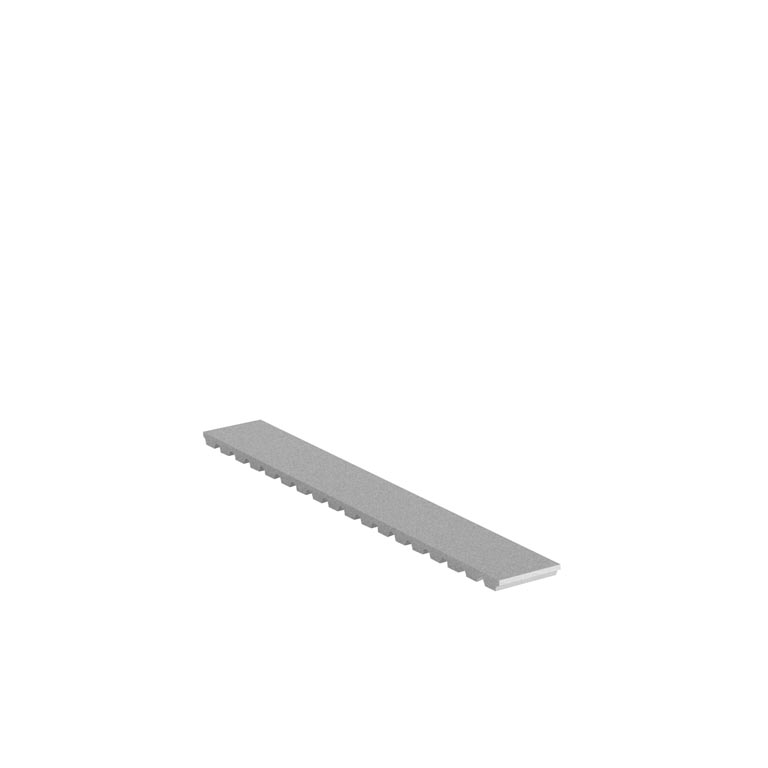

Timing belts (metric T pitch)

cod. 801050

Timing belts (metric T pitch)

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Max tensile strength (N) Breaking load (N) Width L (mm) Weight (Kg/m)
801016 white polyurethane and steel 2.190 7.480 16 0,080
801025 white polyurethane and steel 3.660 12.450 25 0,130
801050 white polyurethane and steel 8.050 27.400 50 0,260
