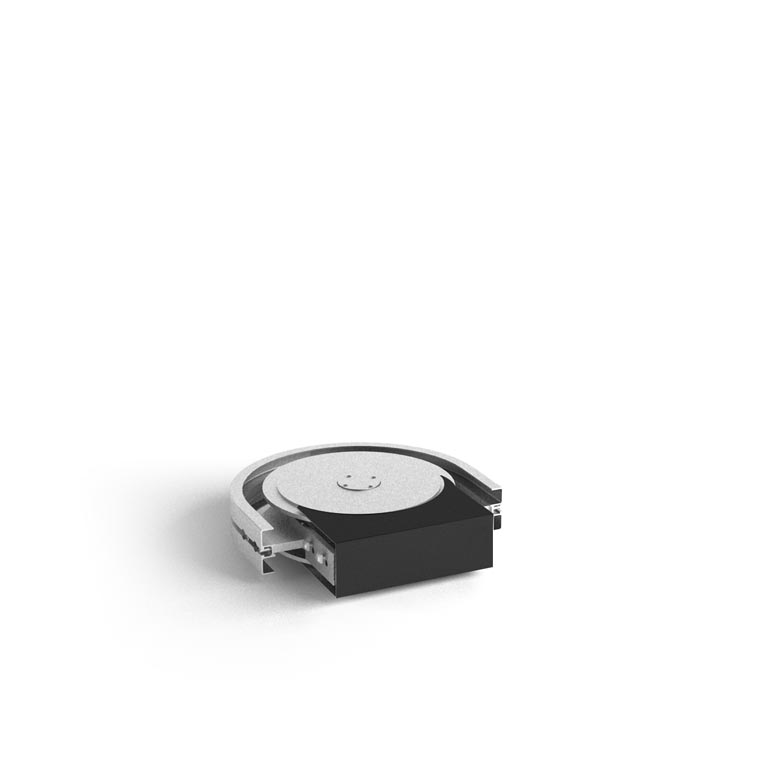

Return 180° idle curve

cod. AR200065-180

Return 180° idle curve

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Channel dimension (mm) Chain width (mm) Medium radius (mm) Angle
AR200065-180 65 63 150 180°
Pulley without teeth
Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
