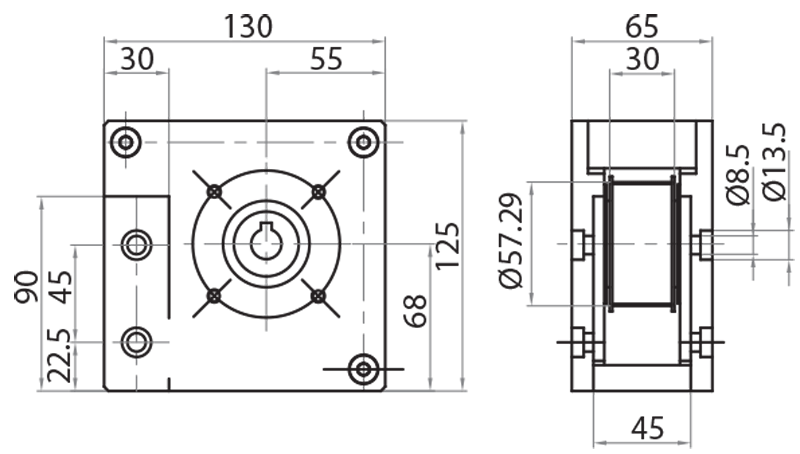

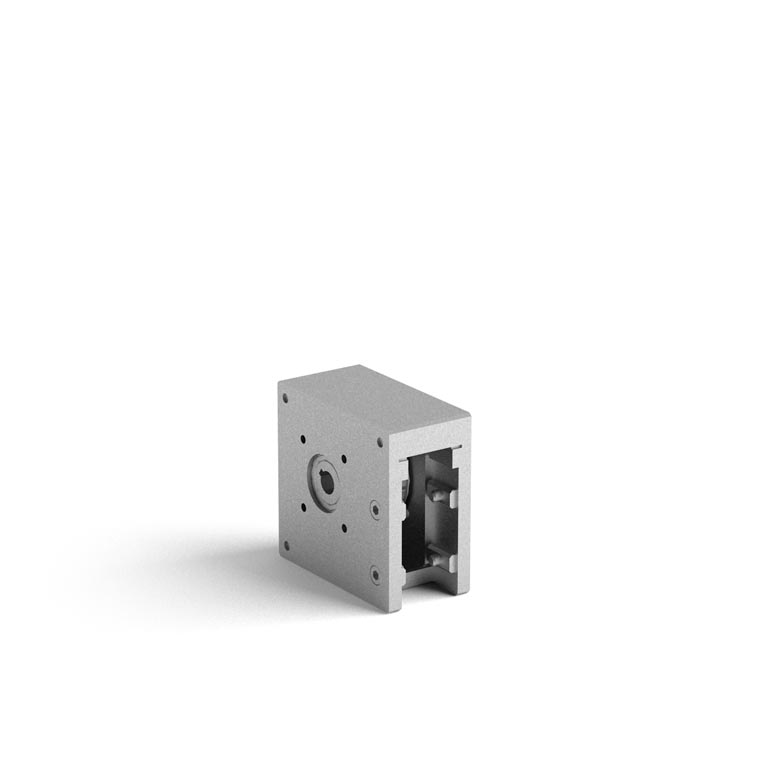

Drive head for 810025 and 810025P

cod. 804525-18

Drive head for 810025 and 810025P

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Suitable for MVF30 and MVF44 fastening
Art. No. Material Pulleys Shaft and gear motor fastening (mm) Type Weight (Kg)
804525 aluminium and steel z 18
dp=57,30 mm
de=55,45 mm		 Ø14 - Ø68 for belt 25AT10 2,2
804525-18 aluminium and steel Ø18 - Ø87 for belt 25AT10 2,2
