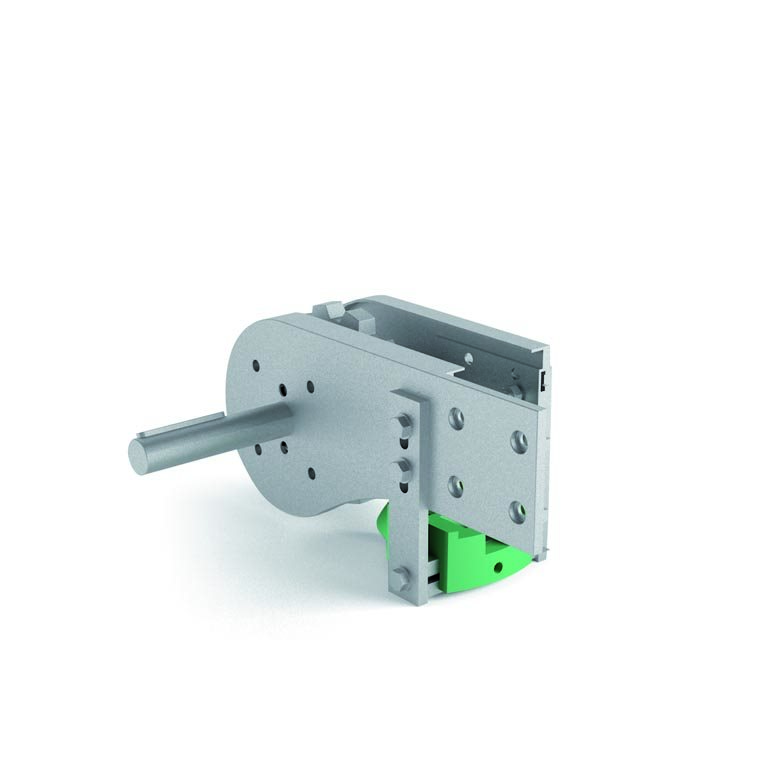

Pulling side head (left)

cod. ATA12314S

Pulling side head (left)

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

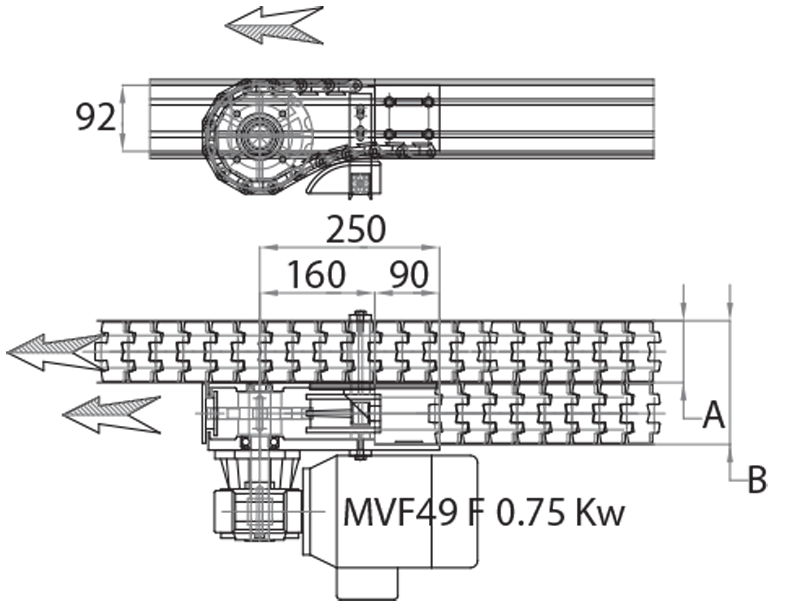

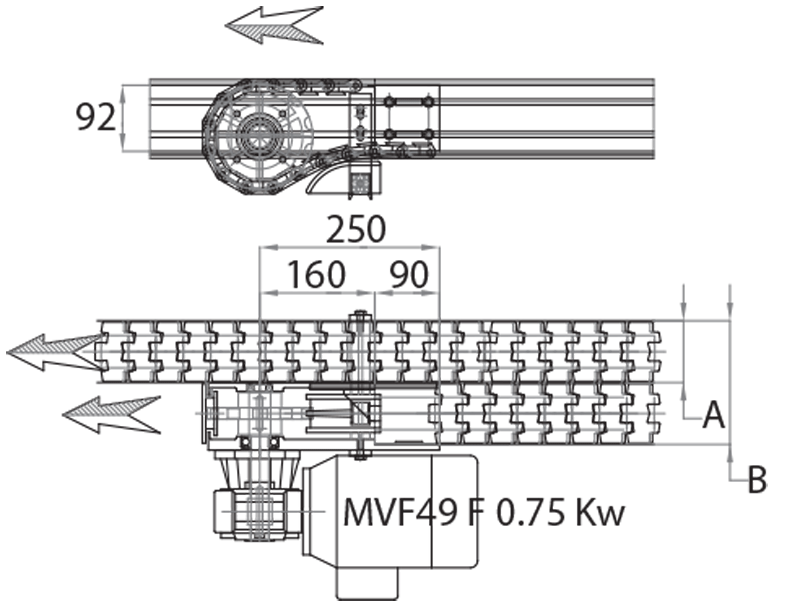

Art. No. Pitch Ø (mm) External Ø (mm) A (mm) B (mm)
ATA12086S 147,2 149,9 86 172
ATA12127S 147,2 149,9 127 254
ATA12196S 147,2 149,9 196 392
ATA12259S 147,2 149,9 259 518
ATA12314S 147,2 149,9 314 628
