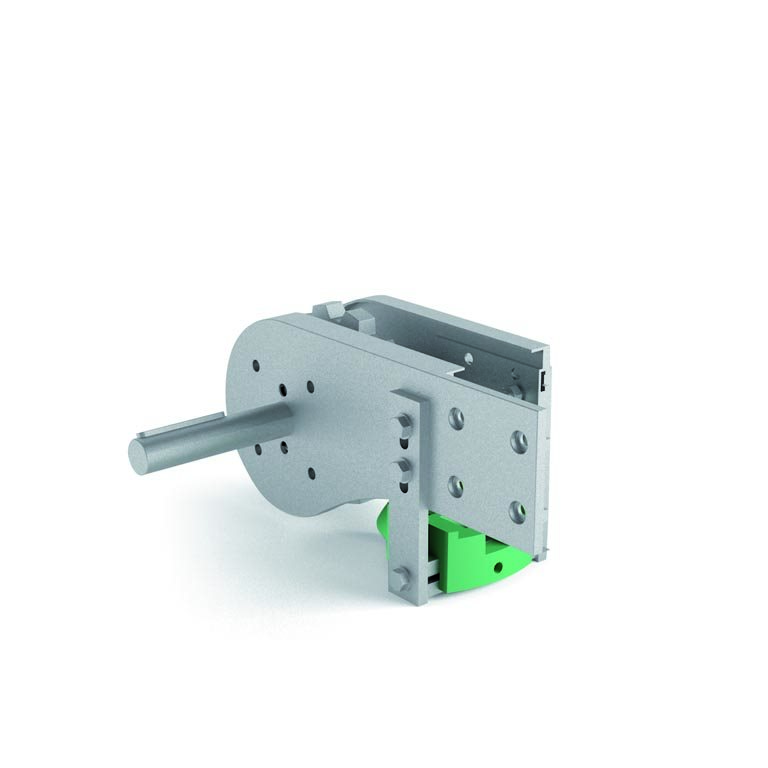

Pulling side head (left)

cod. ATA12259S

Pulling side head (left)

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

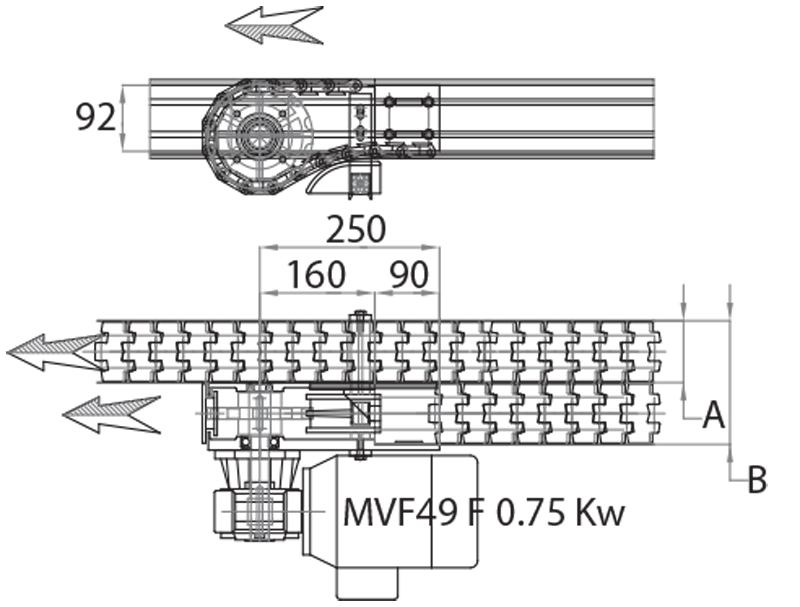

Art. No. Pitch Ø (mm) External Ø (mm) A (mm) B (mm)
ATA12086S 147,2 149,9 86 172
ATA12127S 147,2 149,9 127 254
ATA12196S 147,2 149,9 196 392
ATA12259S 147,2 149,9 259 518
ATA12314S 147,2 149,9 314 628
ATA12086S Pulling side head (left) for channel 86 mm ATA12086S 0.00€
ATA12127S Pulling side head (left) for channel 127 mm ATA12127S 0.00€
ATA12196S Pulling side head (left) for channel 196 mm ATA12196S 0.00€
ATA12259S Pulling side head (left) for channel 259 mm ATA12259S 0.00€
ATA12304S Pulling side head (left) for channel 314 mm ATA12304S 0.00€
