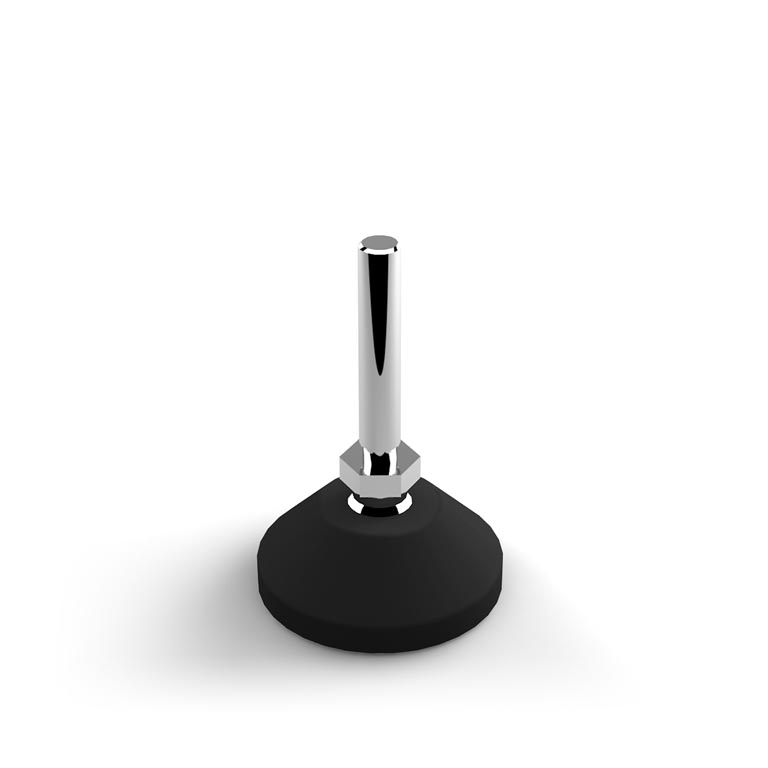

Anti-vibration articulated feet Ø50 mm

To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

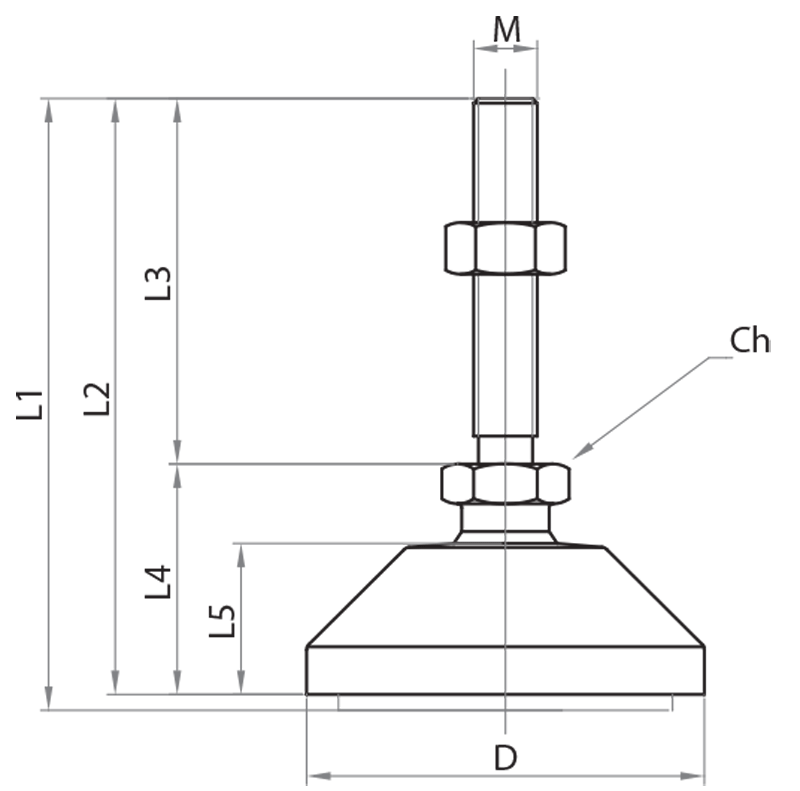

Art. No.	Max Load (Kg)	Base diameter (mm)	Stem diameter	Weight (Kg)	L1	L2	L3	L4	L5	D	M	Ch
405006	900	50	M6	0,052	75	74	42,5	31,5	20	50	6	14
405008	900	50	M8	0,052	75	72	42	30	19	50	8	14
405010	900	50	M10	0,076	75	72	42	30	19	50	10	14
405010/L	900	50	M10	0,078	102	100	70	30	19	50	10	14
405012	900	50	M12	0,075	75	72	42	30	19	50	12	14
405012/L	900	50	M12	0,094	102	100	70	30	19	50	12	14
405016	900	50	M16	0,167	102	100	70	30	19	50	16	17
