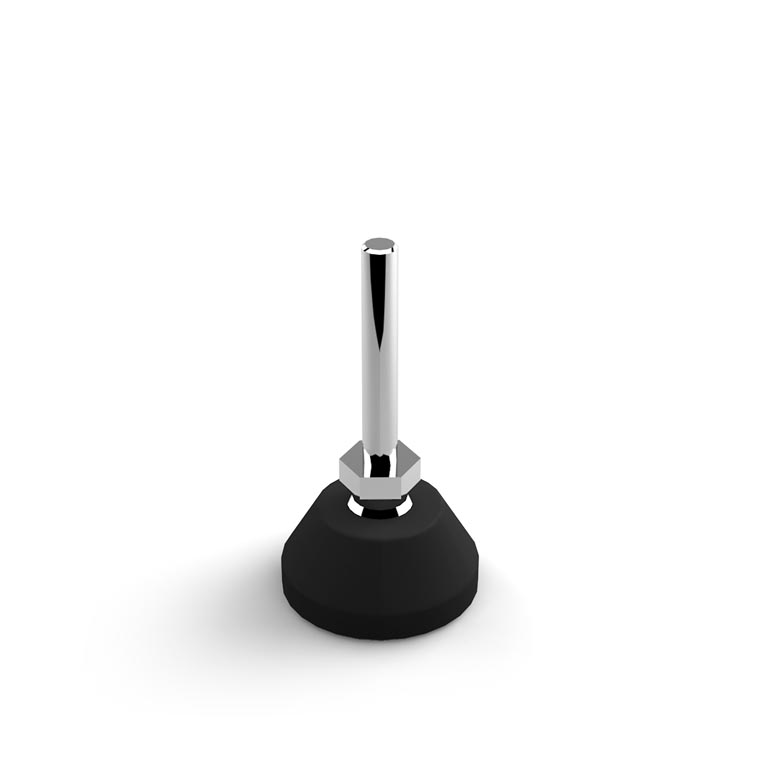

Anti-vibration articulated feet Ø40 mm

To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

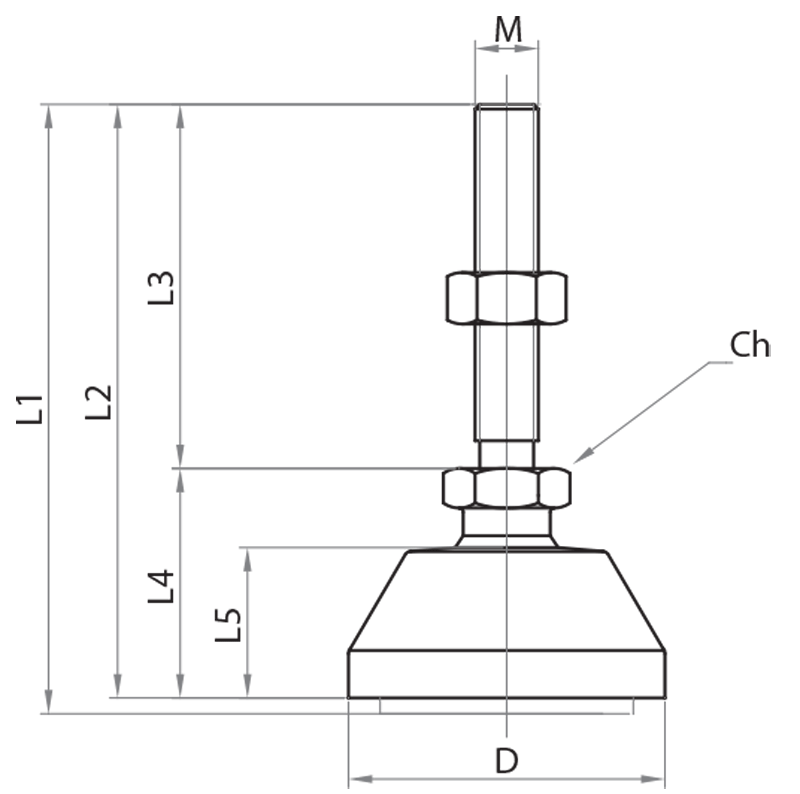

Art. No.	Max Load (Kg)	Base diameter (mm)	Stem diameter	Weight (Kg)	L1	L2	L3	L4	L5	D	M	Ch
404006	900	40	M6	0,058	75	74	42,5	31,5	20	40	6	14
404008	900	40	M8	0,058	75	72	42	30	19	40	8	14
404010	900	40	M10	0,072	75	72	42	30	19	40	10	14
404010/L	900	40	M10	0,074	102	100	70	30	19	40	10	14
404012	900	40	M12	0,070	78,5	75	45	30	19	40	12	14
404012/L	900	40	M12	0,090	102	100	70	30	19	40	12	14
404016	900	40	M16	0,162	102	100	70	30	19	40	16	17
