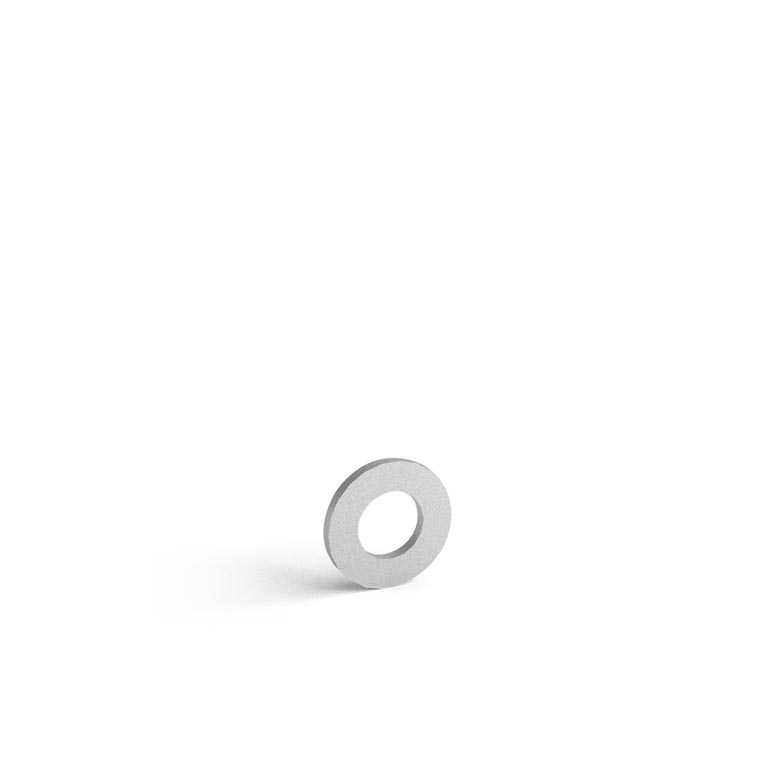

Washers

cod. C7501021

For seal fastenings in case of vibrations

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

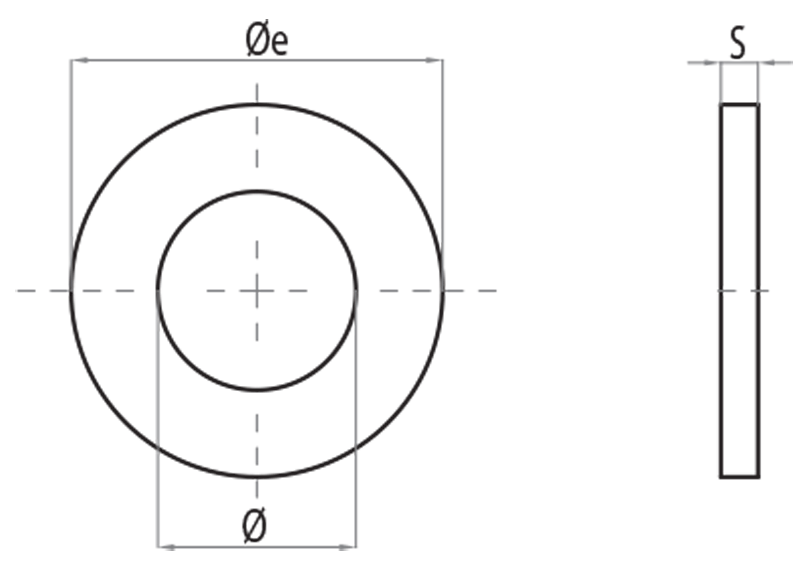

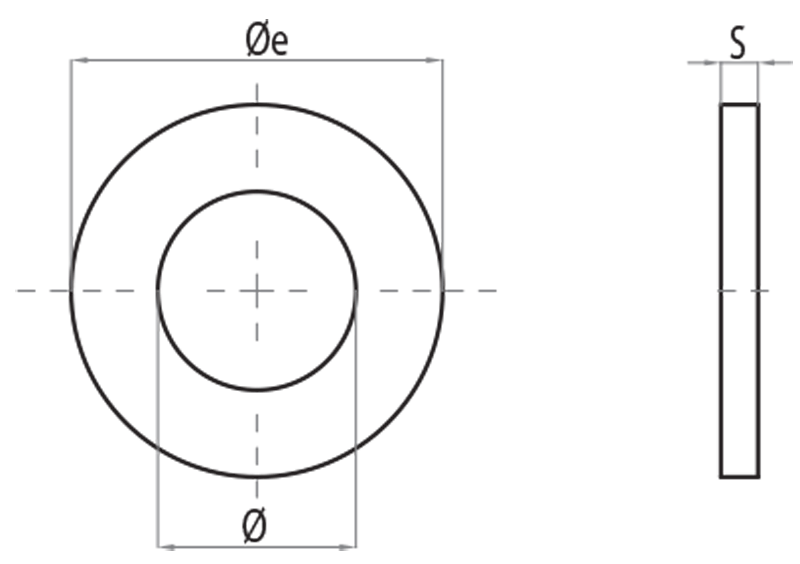

Art. No. Material Washer type Dimensions (mm) Weight (Kg)
C7500817 zinc-coated steel Ø8 Øe=15
s=1,5		 0,001
C7501021 zinc-coated steel Ø10 Øe=18
s=2		 0,001
C7501630 zinc-coated steel Ø16 Øe=27
s=2,5		 0,001
