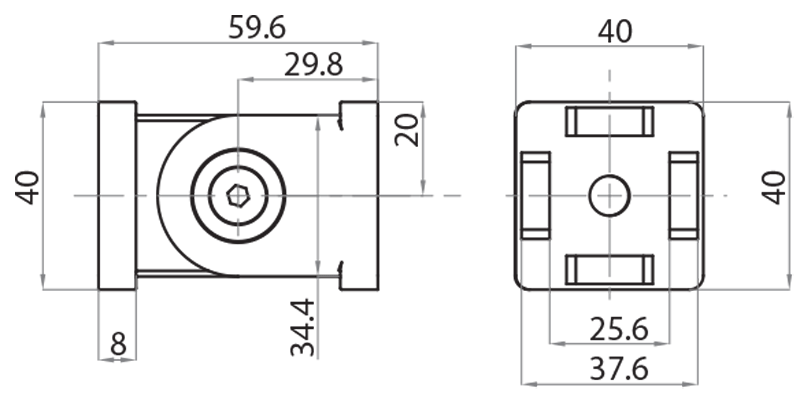

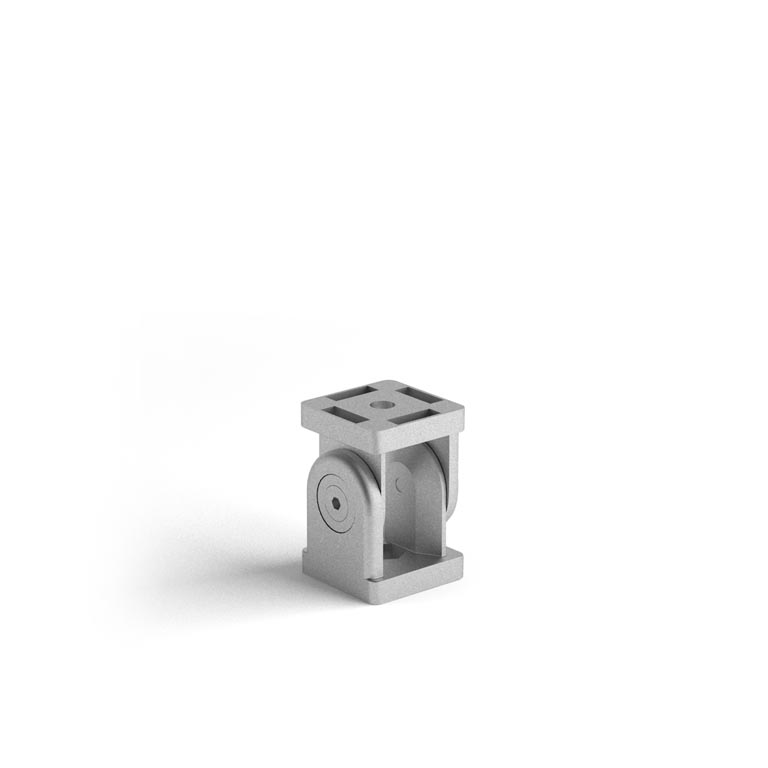

Pivot joint with screw tightening 40x40

cod. 324040

Pivot joint with screw tightening 40x40

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Profile type Function Weight (Kg)
324040 sandblasted aluminium 8 mm groove, series 40 joint for diagonal strut strenghtening or supports 0,0120
Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
