80x180

cod. 108018

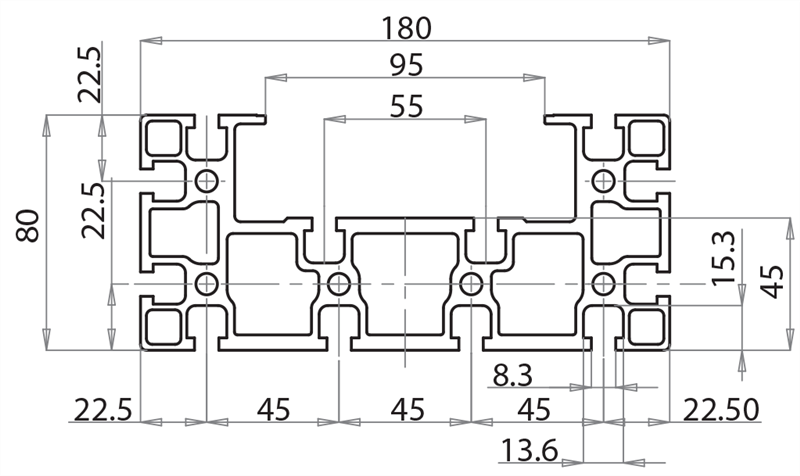

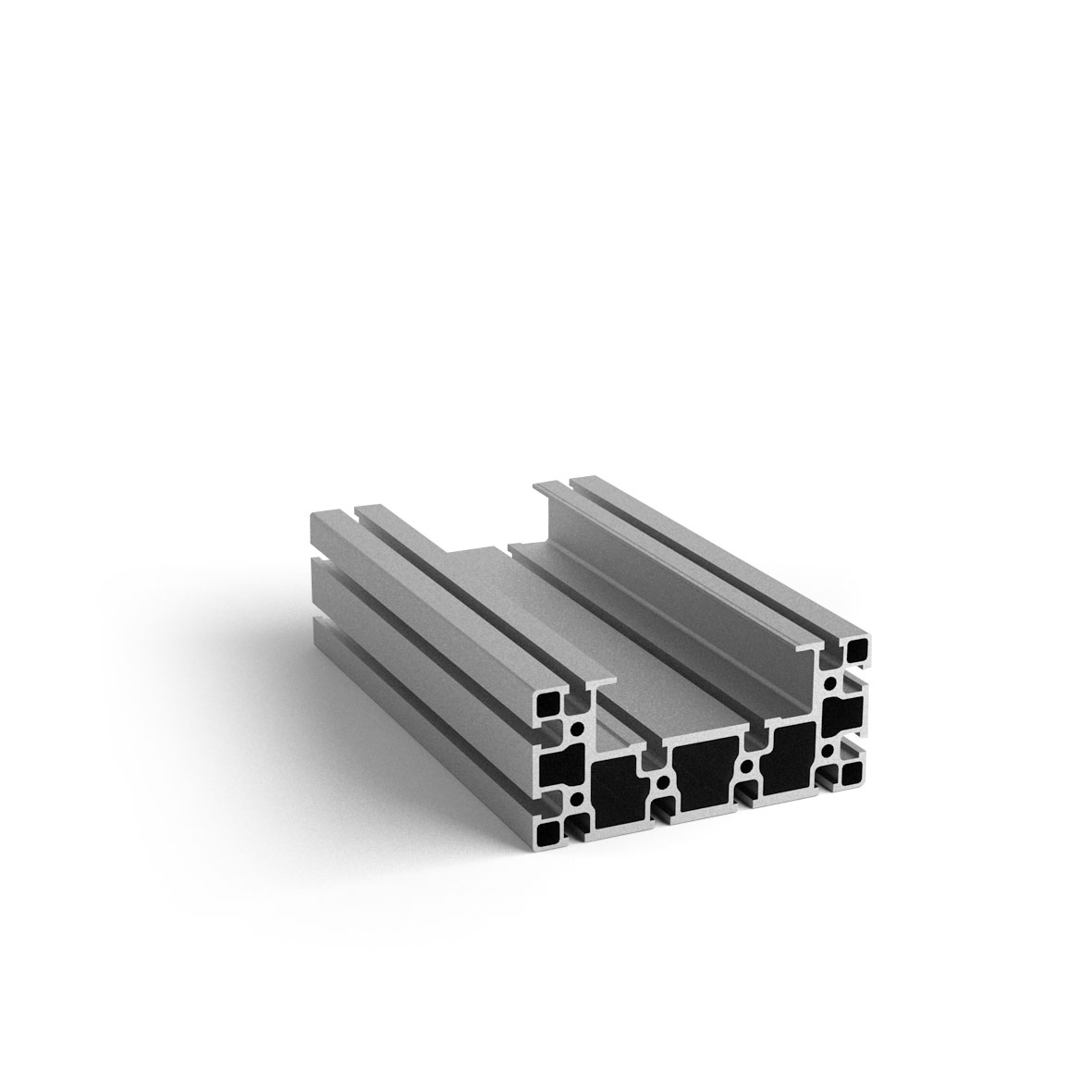

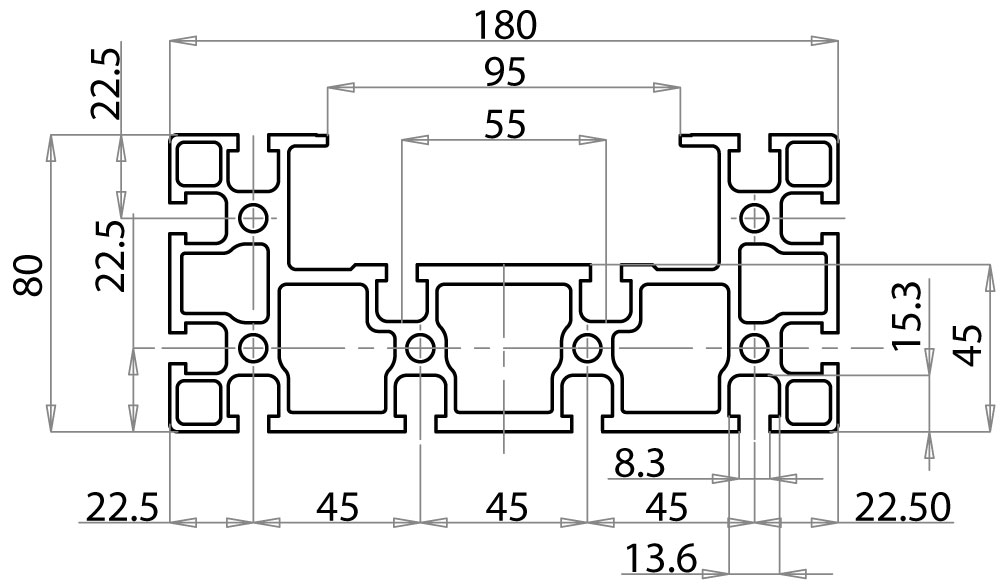

Aluminium profile for motor and linear guide mm 80x180

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Bending inertial moment  lx Bending inertial moment  ly Section modulus  wx  Section modulus wy Color  Art. No. Weight
195,85 cm4 1.245,85 cm4  48,96 cm3  138,42 cm3  Natural  108018 9,830 Kg/m
GENERAL CHARACTERISTICS
ALLOY EN AW-6060
PHYSICAL STATUS T6
MECHANICAL PROPERTIES UNI EN 755-2
CHEMICAL COMPOSITION UNI EN 573-3
SHAPE TOLERANCES UNI EN 12020-2
SURFACE TREATMENT ANODIC OXIDATION 15 µm
* On request: mill finish / black anodized / raw
Supply: bars with length 6010 mm
* Minimum supply required
