45x90 telescopic

cod. 134590

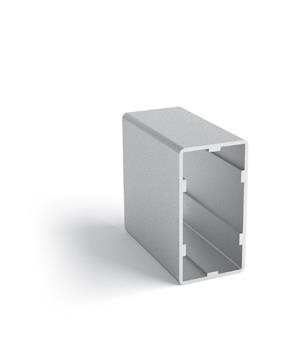

Telescopic aluminium profile 45x90 mm

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Bending inertial moment  lx  Bending inertial moment  ly Section modulus wx Section modulus wy Color  Art. No. Weight
78,47 cm4 28,43 cm4  17,43 cm3  12,63 cm3  Natural  134590  1,850 Kg/m
GENERAL CHARACTERISTICS
ALLOY EN AW-6060
PHYSICAL STATUS T6
MECHANICAL PROPERTIES UNI EN 755-2
CHEMICAL COMPOSITION UNI EN 573-3
SHAPE TOLERANCES UNI EN 12020-2
SURFACE TREATMENT ANODIC OXIDATION 15 µm
* On request: mill finish / black anodized / raw
Supply: bars with length 6010 mm
* Minimum supply required
