40x80 Light

cod. 104080L

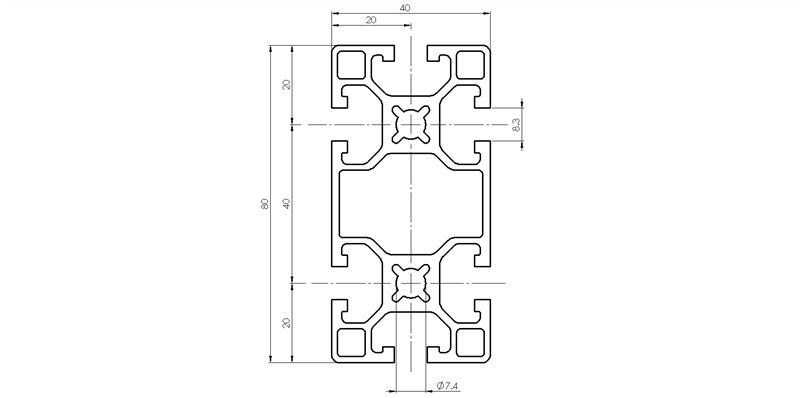

Light Profile 40x80, 8 mm groove, series 40

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Bending inertial moment lx Bending inertial moment ly Section modulus wx Section modulus wy Color Art. No. Weight
60,53 cm4 15,45 cm4  15,13 cm3  7,72 cm3  Natural 104080L 2,560 Kg/m
GENERAL CHARACTERISTICS
ALLOY EN AW-6060
PHYSICAL STATUS T6
MECHANICAL PROPERTIES UNI EN 755-2
CHEMICAL COMPOSITION UNI EN 573-3
SHAPE TOLERANCES UNI EN 12020-2
SURFACE TREATMENT ANODIC OXIDATION 15 µm
* On request: mill finish / black anodized / raw
Supply: bars with length 6010 mm
* Minimum supply required

Prodotti collegati

224080 - 224080G
End cap 40x80
