45x90 openable grooves

cod. 124592

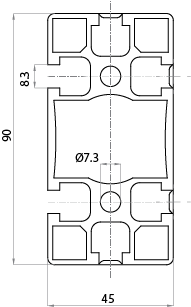

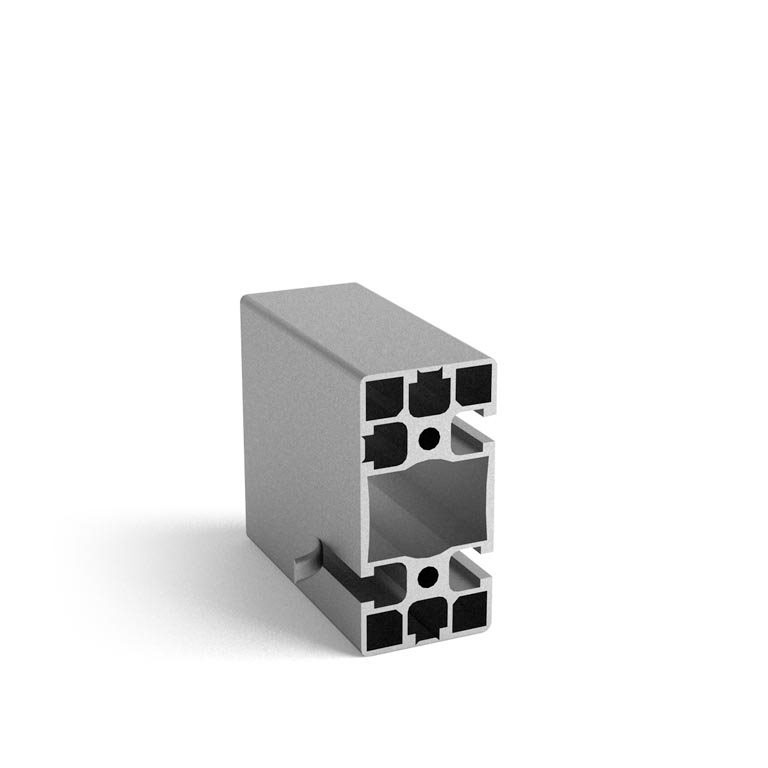

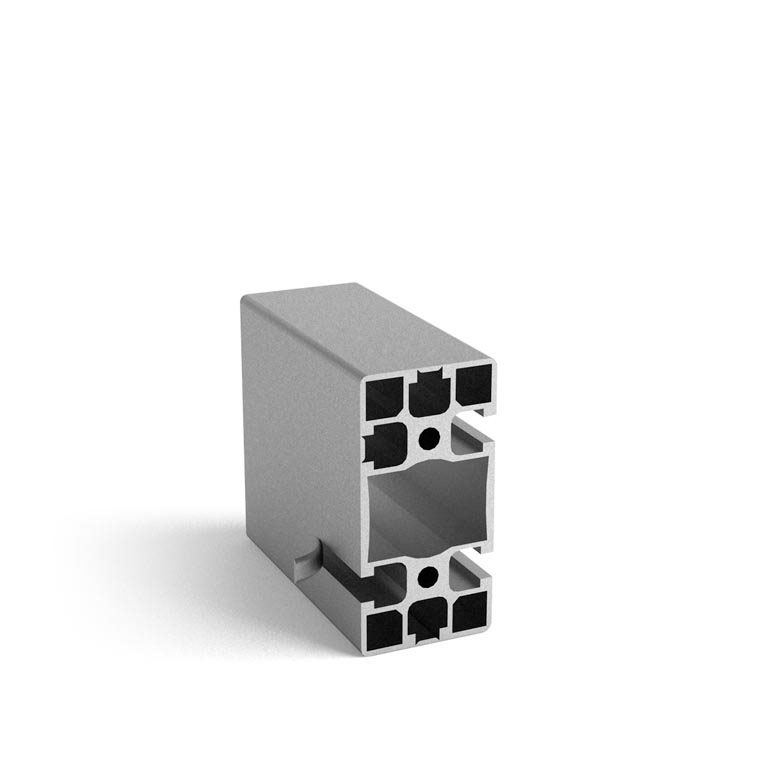

Standard profile 45x90 with openable grooves

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Bending inertial moment lx Bending inertial moment ly Section modulus wx Section modulus wy Color Art. No. Weight
 96,65 cm4 24,65 cm4  21,47 cm3  10,95 cm3  Natural 124592 3,196 Kg/m
GENERAL CHARACTERISTICS
ALLOY EN AW-6060
PHYSICAL STATUS T6
MECHANICAL PROPERTIES UNI EN 755-2
CHEMICAL COMPOSITION UNI EN 573-3
SHAPE TOLERANCES UNI EN 12020-2
SURFACE TREATMENT ANODIC OXIDATION 15 µm
* On request: mill finish / black anodized / raw
Supply: bars with length 6010 mm
* Minimum supply required

Prodotti collegati

224590 - 224590G
End cap 45x90
224590L - 224590LG
End cap 45x90
